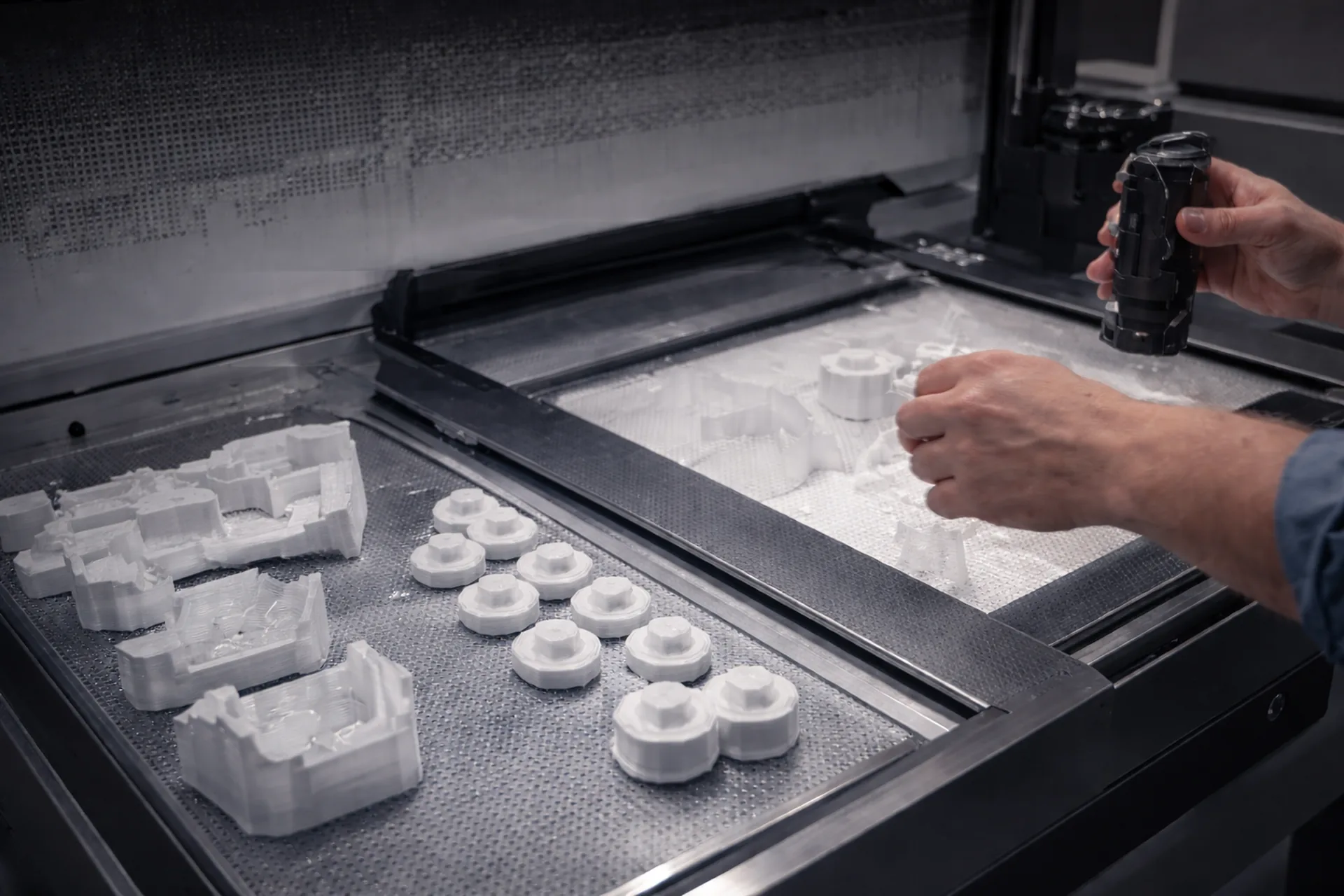

MJF 3D Printing Service
MJF 3D printing service for functional nylon parts in 1–3 business days. PA12 / PA11 / PA12 GB / TPU available, with vapor smoothing and dyeing options. Upload STEP or STL to get a quote with DFM feedback.
ISO 9001:2015 | ISO 13485:2016 | AS9100D | ITAR compliant
MJF 3D Printing Capabilities
Our MJF 3D printing services cover everything from prototypes to production-grade parts. Below are typical specs we can achieve.
| Parameter | Specification |
|---|---|
|
Layer Thickness |
80 microns
|
|
Max Build Size |
380 x 284 x 380 mm |
|
Typical Lead Time |
1–3 business days (depends on quantity & finishing) |
|
Materials Available |
PA12, PA11, PA12 Glass Beads (PA12 GB), TPU |
|
Dimensional Tolerances |
±0.3% (min ±0.3 mm) |
|
Tighter Tolerances (Critical Features / Datums) |
±0.10–0.20 mm achievable with post-machining / controlled datums |
|
Minimum Wall Thickness (Supported) |
0.8 mm min (local), 1.0–1.2 mm recommended for stability |
|
Minimum Wall Thickness (Large Flat Areas) |
1.5–2.0 mm recommended or add ribs to reduce warpage |
|
Minimum Feature Size (Pins/Ribs/Details) |
0.5 mm min, 0.7–1.0 mm recommended for robustness |
|
Minimum Emboss/Deboss (Text/Logos) |
0.5 mm depth/height min, 0.8–1.0 mm recommended |
|
Minimum Hole Diameter (As-Printed) |
1.5 mm min (smaller may close); 2.0 mm+ recommended |
|
Hole Accuracy / Fit Guidance |
For press-fit/precision holes: drill/ream post-print recommended |
|
Minimum Clearance / Gap (Assembly) |
0.5 mm min (moving/fit features), 0.6–0.8 mm recommended |
|
Threading Options |
Self-tapping screws supported; tapping and threaded inserts recommended for durable threads |
|
Surface Finish (As-Printed) |
Matte, lightly textured nylon surface; ~8–12 μm Ra typical (geometry dependent) |
|
Surface Finish (Vapor Smoothing) |
64–100 μin Ra (≈1.6–2.5 μm Ra) |
|
Finishing Options |
Bead blasting, dyeing, painting, vapor smoothing |
|
Post-Machining |
Drilling/reaming, tapping, datum surfacing for critical interfaces |
|
Color Options |
Natural (as-printed), dyed colors; custom painting on request |
|
File Formats Accepted |
STEP (preferred), STL, 3MF (PDF for drawing notes/CTQ) |
|
Inspection & Documentation |
Visual + critical dims standard; dimensional/CMM reports & material documentation on request |
MJF Finishing Options for Nylon Parts
Choose finishing based on appearance, sealing, wear, and assembly requirements.
Standard Bead Blasting
Removes loose powder and evens the surface to a uniform matte finish. Recommended for functional parts where appearance consistency and clean handling are required.
Vapor Smoothing
Reduces surface roughness and improves cleanability and moisture resistance. Recommended for parts that require a smoother touch, better sealing surfaces, or improved cosmetic appearance.
Tumbling & Painting
Tumbling smooths contact points and softens the surface feel. Painting adds color and improves UV stability for visible housings and end-use assemblies.
Custom Finishes
Custom options available on request: dyeing, priming, threaded inserts, sealing, and secondary machining. Share your color target, cosmetic requirements, and any CTQ features during quoting.
Not sure which finish to choose? Share your requirements during quoting for recommendations.
Related 3D Printing Services
We offer a full range of 3D printing services to match different project needs. Explore the options below or visit our 3D Printing Service page for complete details.
For functional nylon parts with complex geometries and no support structures.
Get a Quote for MJF 3D Printing
Upload your CAD file to receive a quote with DFM feedback. Typical response within 24 hours.
