Finite Element Method – What is It?

In the vast realm of engineering, where structures defy simplicity, a captivating solution emerges – the Finite Element Method (FEM). Picture this: a satellite poised for launch, a delicate balancing act within a car’s suspension system, or the intricate support structure of an air conditioner.

These scenarios pose challenges beyond the grasp of traditional analytical methods due to their complex geometries, diverse loadings, or intricate materials. Here’s where FEM steps in, a numerical powerhouse widely embraced across engineering domains.

Decoding the Finite Element Method

Decoding the Finite Element Method

Let’s embark on an exploration of how FEM tackles the formidable. Imagine dissecting the supports of an air conditioner.

In the realm of static linear elastic stress analysis, the goal is to compute stresses, strains, and displacements within the support – termed as “field variables.” While balancing a simple beam is straightforward, the complexity intensifies for two or three-dimensional bodies.

Enter FEM, which tackles this challenge by discretizing the body into small elements connected at nodes, creating a mesh. Triangular surface elements suit the thin support, but choices abound, from solid elements for three-dimensional bodies to one-dimensional elements for simplicity.

  • Element Diversity: Hundreds of element types exist, each with unique formulations and levels of approximation. For instance, a beam element can capture axial, bending, shear, and torsional effects.

Unveiling the Degrees of Freedom

Unveiling the Degrees of Freedom

Now, envision the quest to calculate displacements at every node within the mesh. Degrees of freedom (DOFs) play a pivotal role here. A vector {u} encapsulates potential displacements, including rotations, at each node.

A 2D beam element introduces 3 DOFs per node, escalating to 6 in 3D. Understanding DOFs is crucial; a shell element, despite having 3 translational DOFs per node, employs translational nodes to represent its rotational DOFs.

  • Choosing the Right Element: Selection hinges on the scenario, with factors like geometry and loadings influencing the decision. Elements can range from first-order to second-order, the latter offering enhanced accuracy.

Matrix Magic: Rigidity Unveiled

To comprehend displacements across the mesh, we delve into matrix magic. Consider the nodal force vector {f}, nodal displacement vector {u}, and the stiffness matrix [k].

This matrix defines how each node displaces concerning applied forces and moments. Solving this system of linear equations unfolds the mesh’s displacement. Despite its sparse nature, the global stiffness matrix captures the interconnectedness of all elements.

  • Sparse Symmetry: A sparse, symmetric matrix characterizes linear-elastic problems, revealing an underlying efficiency.

Global Rigidity: Assembling the Puzzle

As the journey progresses, we assemble individual stiffness matrices into a colossal global stiffness matrix. Elements interconnect at nodes, and continuity dictates shared displacements at connected nodes.

The global stiffness matrix manifests as a sparse, banded structure, preserving the problem’s essence. Altering connections reshapes the matrix, emphasizing the importance of coordinating element stiffness matrices in a global context.

  • Coordinated Connectivity: The global stiffness matrix reflects the interconnectedness of elements, dynamically adjusting with alterations in connectivity.

The Solver’s Dilemma: Solving for Displacements

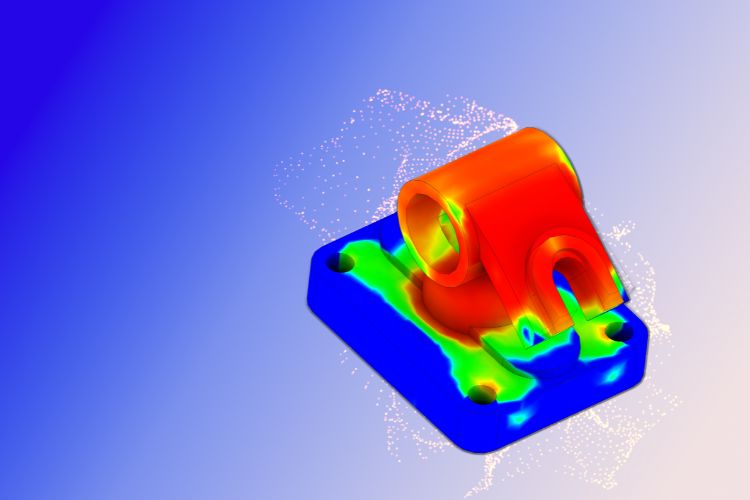

The Solver's Dilemma: Solving for Displacements

With the global stiffness matrix in hand, we embark on solving the displacement equation. Conditions of displacement and applied loads, constituting the external environment, guide this endeavor.

Constraints on vertical and horizontal displacements at specific nodes, depicting fixed degrees of freedom, shape the displacement vector. The resultant equation incorporates applied and reaction forces, culminating in a system ripe for solving.

  • Solver Strategies: Inverting the global stiffness matrix poses inefficiencies; iterative solvers, like the conjugate gradient method, prevail in practice for sparse matrices.

Beyond Displacement: Unveiling the Field Variables

Once displacements are unraveled, the final act unfolds – computing strains, stresses, and other field variables across the mesh.

A typical finite element mesh may harbor tens of thousands of degrees of freedom, a realm unattainable manually. Specialized software seamlessly navigates this complexity, propelling FEM beyond basic models.

  • Software Facilitation: FEM’s practical application necessitates powerful software to navigate complex models with ease.

Conclusion: Unlocking the Engineering Tapestry

In essence, the Finite Element Method is a tapestry woven with mathematical precision, unraveling complexities that defy traditional analytical methods. Its versatility spans statics, dynamics, buckling, modal analysis, fluid flow, heat transfer, and electromagnetic problems.

As we conclude this journey through FEM’s intricacies, ponder: How has this numerical marvel revolutionized your perspective on engineering challenges?
