The Incredible Strength of Bolted Joints

In the vast world of engineering, where complexity often reigns supreme, there lies an unsung hero— the humble bolted joint.

These unassuming combinations of nuts and bolts, often overlooked in their simplicity, possess an incredible strength that plays a crucial role in diverse applications.

Let’s embark on a journey into the intricate world of bolted joints, where the assembly process unveils their hidden power.

The Dance of Threads: Understanding Preload

The Dance of Threads- Understanding Preload

As the threads of a bolt and nut engage in a rotational embrace during tightening, a magical transformation occurs. The bolt stretches, creating a tensile force known as preload.

This force, intentionally applied before external loads, endows the joint with increased strength, resilience against fatigue, and a reduced likelihood of failure.

Tension Joints:

When the load pulls the components apart, preload maintains clamping force, delaying joint separation.

Shear Joints:

Preload generates friction, creating slip-resistant joints and preventing direct shear loads on the bolt.

Navigating the Realm of Tension and Shear

Navigating the Realm of Tension and Shear

In the tension realm, clamping force becomes a shield, and in shear, friction steps in as a defender. Yet, joints aren’t confined to a single realm; they often face both tensile and shear challenges.

Eccentric loads introduce bending moments, demanding a careful assessment of their combined effects.

Bearing Joints:

Understanding failure modes, from material tensile failure to shear failure, guides intelligent joint design.

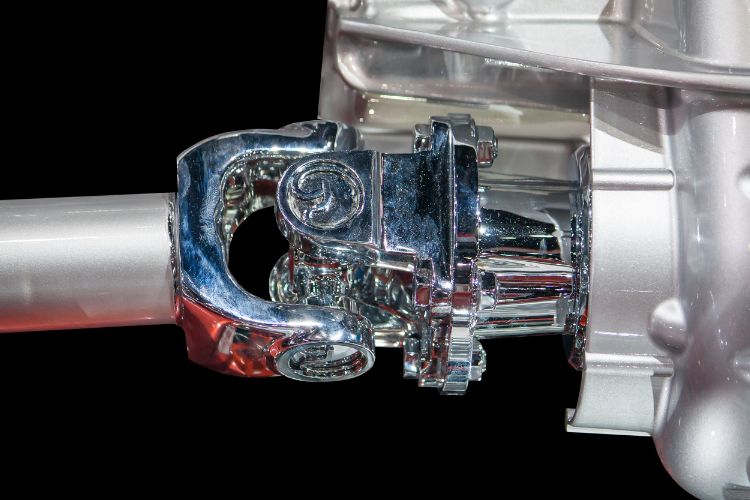

Controlling the Unseen: The Art of Preload Management

Controlling the Unseen- The Art of Preload Management

With great power comes the need for precise control. The amount of preload applied to a joint plays a pivotal role, influencing its performance.

The challenge lies in achieving the optimal preload without compromising the integrity of the bolt or the clamped components.

Torque Method:

Though widely used, its accuracy can be limited due to various factors like friction.

Turn-of-Nut Method:

A practical alternative with improved accuracy but still subject to limitations.

Elongation Measurement:

The most accurate method, measuring bolt elongation ensures reliable preloads within a few percentage points of the target.

From Earth to Space: The Universal Impact of Bolted Joints

From Earth to Space: The Universal Impact of Bolted Joints

The significance of bolted joints extends beyond earthly applications. Even the International Space Station relies on meticulously controlled preload forces in its Common Berthing Mechanism to create a secure seal between modules.

As we unravel the intricacies of bolted joints, a crucial question lingers: How can we continue to innovate and refine the art of joint design to meet the evolving demands of engineering applications?

The answer lies at the intersection of simplicity and precision, where the unsung heroics of nuts and bolts continue to shape the foundations of our technological endeavors.
