How Things Are Made | An Animated Introduction to Manufacturing Processes

Have you ever wondered about the enchanting journey from shapeless raw materials to the everyday products that surround us? Join us on an animated exploration of manufacturing processes.

 In this article, we delve into the six main categories of manufacturing processes: forming, casting, molding, joining, machining, and additive manufacturing.

Each category encompasses a multitude of techniques, and the selection of a specific manufacturing process involves various considerations, such as material, object geometry, production volume, tools, material costs, and required automation levels.

A Closer Look at Forming

A Closer Look at Forming

Let’s start with forming, a process that entails applying forces or pressure to plastically deform materials, primarily metals. This includes both cold and hot working methods. Forging, rolling, and extrusion are common forming processes.

Modern forging involves machines, where repeated hammer strikes shape the metal between closed upper and lower molds. Forged objects often boast enhanced mechanical properties compared to cast ones.

However, achieving tight tolerances can be challenging and may require expensive equipment.

  • Forging: Utilizes repeated hammer strikes to shape metal.
  • Rolling: Involves passing metal between rollers to reduce thickness.
  • Extrusion: Forces hot metal through a die to produce a long object with a constant cross-section.

The Fascinating Realm of Casting

The Fascinating Realm of Casting

Moving on to casting, this primary shaping process involves pouring molten metal into a mold. Secondary processes like machining may be necessary for the desired surface finish. Casting is widely used for metals, with common methods being die casting, sand casting, and investment casting.

  • Die Casting: Forces molten metal into reusable molds under high pressure.
  • Sand Casting: Creates a one-time-use mold from wet sand.
  • Investment Casting: Involves creating wax patterns attached to a tree, which is then coated in ceramic for casting.

Molding: Shaping the Future

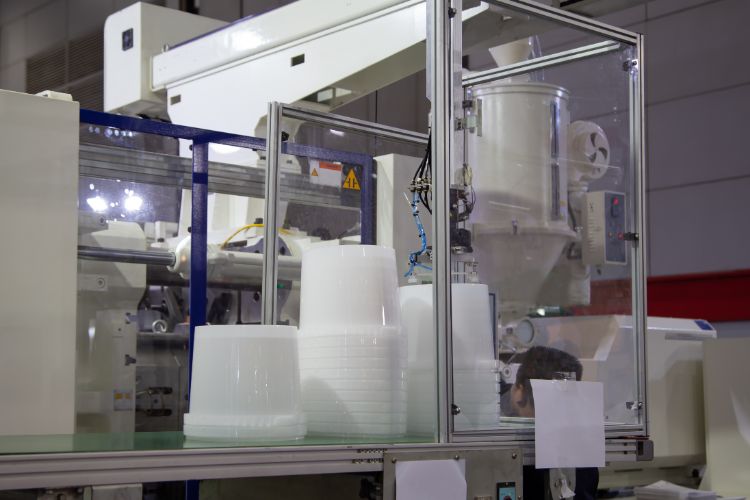

Molding- Shaping the Future

Similar to casting, molding shapes liquid or pliable materials using a mold, often employed for forming plastics. Injection molding and compression molding are two prevalent techniques.

  • Injection Molding: Utilizes a heated screw to pressurize and inject polymer pellets into a mold.
  • Compression Molding: Applies pressure and heat to shape thermosetting polymers.

Precision Through Machining

Precision Through Machining

In the world of machining, material is removed from a larger object using tools. This process is commonly employed for secondary finishing after primary shaping, as seen in casting.

  • Drilling: Circular cutting through a rotating drill press.
  • Turning: Shapes a rotating piece with a cutting tool.

The Art of Joining

The Art of Joining

Joining involves combining separate components into a larger configuration. Welding, riveting, brazing, soldering, and fastening are various joining processes.

  • Welding: Uses extremely high heat to melt distinct metal pieces.
  • Riveting: Joins parts with a mechanical fastener.
  • Brazing: Joins metals by melting and flowing a filler material between them.

Crafting with Additive Manufacturing

Crafting with Additive Manufacturing

Lastly, additive manufacturing adds material layer by layer to create the desired object. Techniques like 3D printing, selective laser sintering, and VAT polymerization fall under this category.

  • 3D Printing: Builds objects layer by layer using computer-generated designs.
  • Selective Laser Sintering: Fuses powdered material layer by layer using a laser.
  • VAT Polymerization: Solidifies liquid resin layer by layer using ultraviolet light.

Conclusion: A Symphony of Creation

In this animated journey through manufacturing processes, we’ve unveiled the intricate steps that turn raw materials into everyday marvels. From the precision of machining to the artistry of molding, each technique plays a vital role in crafting the world around us.

The magic lies in the harmony of these processes, transforming formless materials into functional and aesthetic wonders. What manufacturing process intrigues you the most?
