Injection molding, a revolutionary method blending injection and molding processes, stands as an epitome of efficient manufacturing.

Offering benefits like swift production, automation feasibility, diverse design options, and the capability to craft products ranging from simple to intricate, injection molding has become a cornerstone in mass production across various industries.

At the crux of this method lies a sophisticated procedure where molten plastic is meticulously processed, injected into molds at high pressure, and solidified to produce the final product.

This comprehensive guide aims to delve into the principles underpinning injection molding, elucidating its stages, key factors influencing product quality, and specialized techniques that cater to distinct manufacturing needs.

I. The Basic Principle of Injection Molding

I. The Basic Principle of Injection Molding

The heart of injection molding lies in the thermoplasticity and flowability of plastics.

The process encompasses seven fundamental stages:

  • Closing the Mold: Proper alignment and closure of molds are achieved through a hydraulic system.
  • Mold Clamping Stage: The injection molding machine executes mold clamping, ensuring the mold is securely closed, allowing other production steps to proceed.
  • Plastic Injection Stage: The machine feeds plastic raw material into the mold cavity, where it melts and forms the desired product.
  • Pressure Maintenance Stage: After filling the mold cavity, the machine applies injection pressure to ensure the quality of the parts.
  • Plastic Cooling Stage: Following pressure maintenance, the machine applies controlled pressure for a specific cooling time, solidifying the plastic.
  • Mold Opening Stage: Once the manufacturing steps are complete, the mold opens, and the parts are ejected.
  • Part Shrinkage Stage: As parts cool upon contact with air, slight size reduction may occur, requiring adjustments according to design requirements.

II. Key Principles and Factors in Injection Molding

II. Key Principles and Factors in Injection Molding

Four critical elements significantly impact product quality and manufacturing efficiency in injection molding:

1. Mold Design

Proper mold design is pivotal, influencing aspects like shape, size, wall thickness, and gate location. Precision in mold design ensures accurate product dimensions and prevents defects.

2. Material Selection

Choosing the right material involves understanding its properties, environmental conditions, and cost considerations. Different plastics exhibit distinct characteristics, making material selection integral to the injection molding process.

3. Injection Speed Wages

Injection speed control is crucial for material flow, surface finish, and structural integrity. Precise control over injection speed contributes to the efficiency and quality of the production line.

4. Quality Control

Stringent quality control measures, including product inspection, quantitative feeding, and monitoring of gate marks and ejector pins, ensure consistent and reliable production.

Manufacturers optimizing injection molding operations by considering these principles and factors can produce high-quality plastic products that meet standards and remain cost-effective, leading to satisfied customers and efficient manufacturing operations.

III. Specialized Injection Molding Techniques

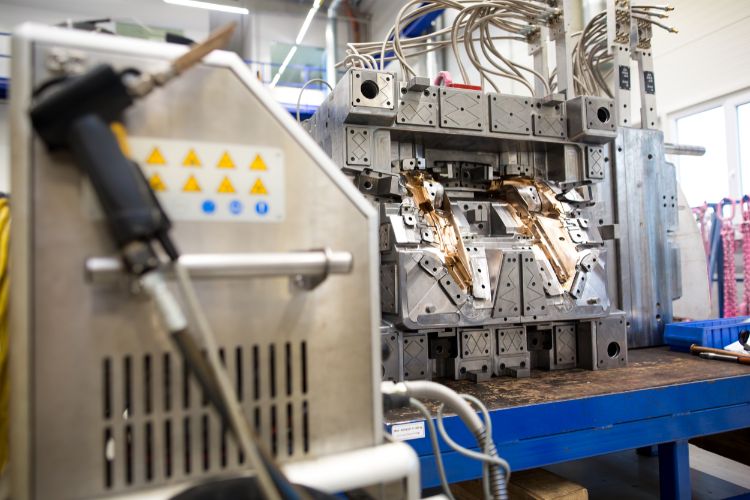

III. Specialized Injection Molding Techniques

While the basic principles persist, specialized techniques cater to specific manufacturing needs. Three notable methods include:

1. Screw Injection Molding Machines

Offering precise control and high-volume production, these machines excel in creating intricate parts. Ideal for industries like automobile, electronics, and medical devices, where precision and high production rates are critical.

2. Reaction Injection Molding (RIM)

Utilizing reactive liquid components, RIM produces high-strength parts with rapid production cycles. Commonly used in industries like automotive and aerospace, RIM accommodates complex shapes and large lightweight structures.

3. Metal Injection Molding (MIM)

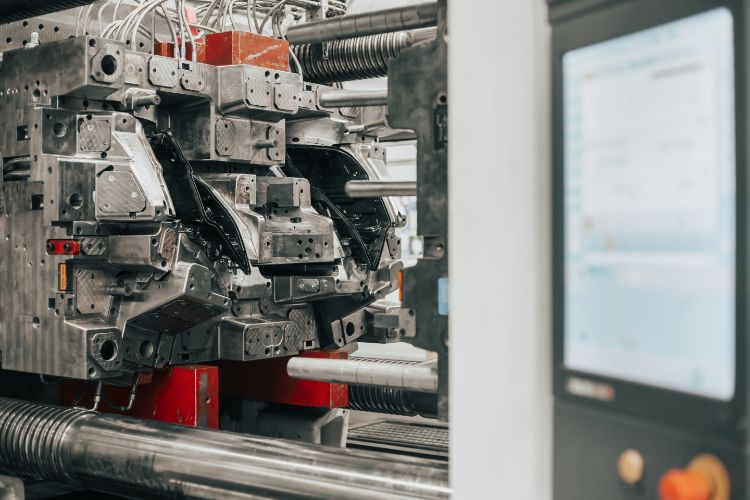

3. Metal Injection Molding (MIM)

This advanced technique blends versatility with metal materials, creating intricate metal parts with excellent mechanical properties. Widely used across industries, MIM is suitable for producing precise metal components.

In conclusion, injection molding techniques, such as screw plastic injection molding, reaction injection molding (RIM), and metal injection molding (MIM), provide tailored solutions for specific manufacturing requirements.

By incorporating these methods, manufacturers can achieve unique advantages in complex parts manufacturing and produce components with exceptional material properties.

IV. The Injection Molding Machine Working Principle

IV. The Injection Molding Machine Working Principle

Understanding the working principle of injection molding machines is paramount for efficient plastic molding processing.

The injection molding principle revolves around heating and melting plastic in the machine’s heating barrel, followed by injecting the molten plastic into a closed mold cavity. This process combines high precision and high productivity, making injection molding a pivotal method in plastic molding.

1. Basic Functions of Injection Molding Machine

Injection molding machines achieve plastic molding through two fundamental functions: heating the plastic to a molten state and applying high pressure to inject and fill the mold cavity.

2. Injection Molding Process/Equipment

The injection molding operation involves plasticizing, filling, compacting, and cooling. The necessary equipment includes a custom plastic molding machine, injection mold tooling, and auxiliary equipment like material drying.

3. How Injection Molding Machine Works

The injection device, typically a screw injection device, plays a central role. It heats and melts the plastic, pushes it into the mold cavity, and controls injection speed, pressure, and holding time.

The mold clamping device is crucial for resisting high melt pressure and ensuring the mold remains closed during the injection molding process.

4. Mold Clamping Device

The mold clamping device completes mold opening and closing actions, resisting the high pressure of injected melt to keep the mold securely closed. Clamping force, exceeding the product of cavity pressure and projected area, ensures proper mold closure.

5. Control System

5. Control System

Injection molding machine hydraulic control systems include conventional, servo, and proportional control systems.

Proportional control systems use elements like electromagnetic proportional flow valves to control flow and pressure, enabling precise control over injection speed, screw speed, and other critical parameters.

In addition to these principles, specialized services like insert molding injection, overmold injection molding, and custom rubber injection molding offer diverse solutions in smart injection molding.

These services, gaining positive feedback overseas, contribute to the continual evolution of injection molding technology.

In essence, injection molding stands as a dynamic and multifaceted process, guided by precise principles and innovative techniques, ensuring the production of high-quality plastic products across various industries.
