The Comprehensive Guide to the Advantages of Metal Injection Molding

The Comprehensive Guide to the Advantages of Metal Injection Molding

Metal injection molding (MIM) stands at the crossroads of innovation, melding the strengths of powder metallurgy with the versatility of injection molding technology.

It has emerged as a cornerstone of modern manufacturing, offering a panacea for intricate part designs with unparalleled efficiency and cost-effectiveness.

In this comprehensive guide, we delve into the intricacies of the MIM process, its advantages over traditional methods, and its diverse applications across industries.

Understanding Metal Injection Molding (MIM)

Understanding Metal Injection Molding (MIM)

Metal injection molding, abbreviated as MIM, epitomizes the synergy of metal powders and binders in an injection molding process.

The process begins with the meticulous blending of metal powders with binders, forming a feedstock ready for injection molding. Once injected into molds, the green parts undergo a series of post-processing steps including debinding and sintering to achieve their final metallic form.

The Four Stages of the MIM Process

The Four Stages of the MIM Process

  • Granulation: Metal powders are intricately mixed with binders to form granules suitable for injection molding. This stage ensures uniform distribution of powders within the feedstock.
  • Injection: The granulated feedstock is injected into molds under high pressure, shaping the green parts with intricate geometries akin to plastic injection molding.
  • Degreasing: Post-injection, the green parts undergo degreasing to remove binders, leaving behind brown parts ready for sintering.
  • Sintering: Through controlled heating, the brown parts undergo sintering, where particles fuse together to achieve the final density and mechanical properties of the metal parts.

Advantages of Metal Injection Molding

Advantages of Metal Injection Molding

1. Complex Part Fabrication

MIM transcends the limitations of traditional metal forming processes, enabling the production of highly intricate parts with unparalleled precision.

Its ability to replicate complex geometries affords engineers greater design freedom, streamlining product assembly and reducing costs associated with multi-part assemblies.

2. Superior Mechanical Properties

The fluid nature of the MIM process ensures uniform distribution of metal powders, resulting in parts with high density and uniform microstructure.

This translates to enhanced mechanical properties including strength, toughness, and ductility, surpassing those achievable through conventional metal forming methods.

3. High Efficiency and Scalability

3. High Efficiency and Scalability

MIM heralds a new era of efficiency in metal part production, offering rapid turnaround times and seamless scalability for high-volume manufacturing.

Its injection molding mechanism facilitates mass production with minimal material wastage, making it a cost-effective solution for diverse industrial applications.

4. Broad Material Compatibility

One of MIM’s hallmark features is its compatibility with a wide range of metal materials, from stainless steel and titanium to exotic alloys and ceramics.

This versatility opens doors to innovative applications across industries, from automotive and aerospace to medical and consumer electronics.

5. Precision and Surface Finish

MIM parts boast exceptional dimensional accuracy, with tolerances as tight as ±0.3%, surpassing the capabilities of traditional metal forming processes.

Additionally, MIM parts exhibit superior surface finish, requiring minimal post-processing to achieve desired aesthetics and functional properties.

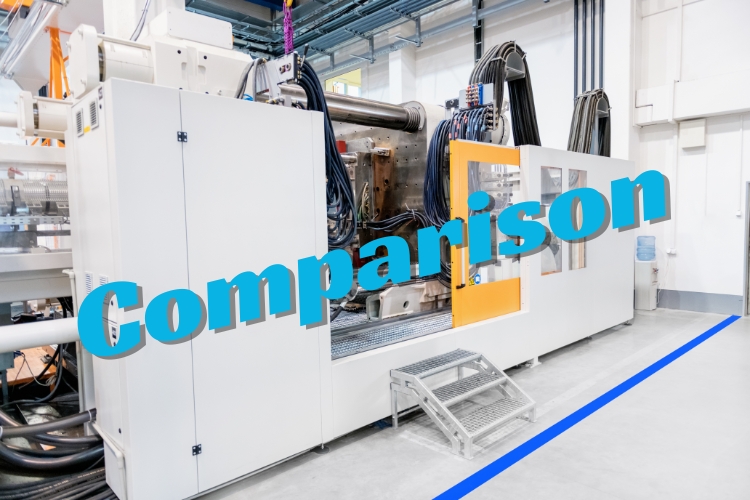

Comparison: MIM vs. Traditional Plastic Injection Molding

Comparison: MIM vs. Traditional Plastic Injection Molding

While both MIM and traditional plastic injection molding share foundational principles of injection molding, their applications and material properties diverge significantly.

1. Material Selection:

MIM harnesses the versatility of metal powders and binders, enabling the fabrication of metallic components with superior mechanical properties. In contrast, plastic injection molding relies on polymers and plastics, limiting its scope to non-metallic parts.

2. Molding Mechanics:

MIM necessitates specialized debinding and sintering processes post-molding, tailored to the unique properties of metal powders.

Plastic injection molding, on the other hand, involves simpler post-processing steps, primarily focused on part trimming.

3. Product Characteristics:

MIM yields metallic components renowned for their strength, durability, and thermal resistance, making them ideal for demanding applications in aerospace, automotive, and medical industries.

Plastic injection molding predominantly produces plastic parts with diverse properties suited to consumer goods, packaging, and electronics.

In essence, while plastic injection molding reigns supreme in the realm of non-metallic part fabrication, MIM emerges as the go-to solution for high-precision, high-strength metal components.

Frequently Asked Questions (FAQs)

A1: MIM encompasses a broad spectrum of materials including stainless steel, titanium, nickel-based alloys, and even ceramics, offering unparalleled versatility in part fabrication.

A2: The entire MIM process, including injection, debinding, and sintering, typically spans between 24 to 36 hours, ensuring rapid turnaround times for high-volume production.

A3: No, MIM is not conducive to prototyping due to high tooling costs and processing complexities. Alternative methods such as metal binder jetting or direct metal laser sintering are better suited for prototyping.

In conclusion, Metal Injection Molding heralds a paradigm shift in metal part manufacturing, offering a potent blend of precision, efficiency, and versatility unrivaled by traditional methods.

With its myriad advantages and burgeoning applications, MIM cements its status as the cornerstone of modern metallurgy, propelling industries towards new frontiers of innovation and excellence.
