5 Common Injection Molding Defects & How to Fix Them

In the intricate dance of injection molding, where liquid plastic transforms into solid forms in mere seconds, a multitude of challenges can arise.

Picture this: the high-pressure injection process, the flow of plastic through the mold, and the swift solidification – all moments pregnant with the possibility of defects.

As we delve into the realm of injection molding defects, think of it as solving a puzzle, each flaw a piece waiting to be fitted into the larger picture.

Today, we bring you insights into five common injection molding defects and the solutions that seamlessly piece the puzzle together.

1. Sink Marks: When the Surface Tells a Deeper Story

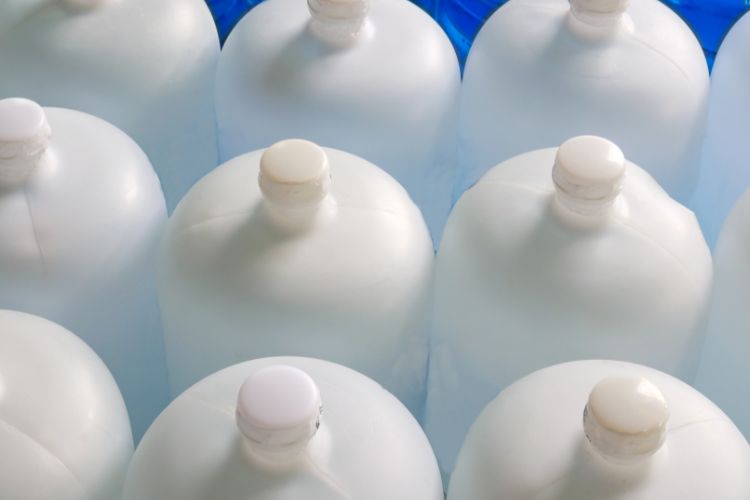

1. Sink Marks: When the Surface Tells a Deeper Story

Sink marks, those small craters that mar the surface, often lurk in thicker sections of the product. Uneven cooling, low injection pressure, or excessive temperatures near the injection point can birth these imperfections.

How to Fix:

  • Optimize cooling by adjusting time and temperature.
  • Modify wall thickness to simplify cooling requirements.

2. Flow Lines: Waves of Aesthetics

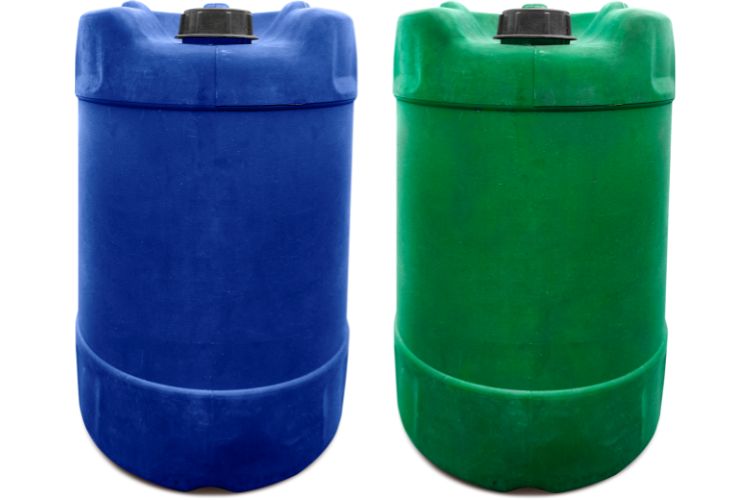

2. Flow Lines: Waves of Aesthetics

Flow lines, akin to subtle waves, present themselves as a wavy pattern, slightly different in color. While they don’t compromise component integrity, their aesthetic impact can be undesirable.

How to Fix:

  • Adjust temperature and injection speed.
  • Alter plastic type or product design.
  • Leverage mold flow analysis for prevention.

3. Short Shot: The Incomplete Tale

3. Short Shot: The Incomplete Tale

Sometimes, the liquid plastic falls short, resulting in an incomplete product. Causes range from inadequate injection polymer to narrow gates or overly viscous material.

How to Fix:

  • Increase injection polymer quantity.
  • Redesign the mold.
  • Opt for a better-flowing plastic type.

4. Burn Marks: The Discoloration Dilemma

4. Burn Marks: The Discoloration Dilemma

Burn marks, appearing as black or rust-colored discolorations, stem from overheating or trapped air. While they seldom affect part quality, prevention involves adjusting injection parameters or incorporating gas vents.

How to Fix:

  • Lower temperature and injection speeds.
  • Introduce gas vents and gates.

5. Warping: When Plastic Takes a Twist

Warping- When Plastic Takes a Twist

Warping manifests as uneven deformation due to uneven cooling or non-uniform mold design. Symmetry and uniformity in mold walls are crucial to avoid this defect.

How to Fix:

As the curtain falls on the various tales of injection molding defects, the key lies in understanding the intricacies and finding harmony in optimizing factors like material, temperature, injection speed, and mold design.Want to learn more about plastic and injection molding?
