Injection Molding Design Considerations

Picture this: a bustling workshop, where ideas are transformed into tangible objects. The hum of machines, the scent of fresh plastic in the air – it’s a symphony of creation.

As we venture into the world of injection molding, we embark on a journey where design intricacies can make or break the final product.

The Prelude: Setting the Stage for Injection Molding

The Prelude: Setting the Stage for Injection Molding

In the heart of the manufacturing process lies the delicate dance of injection molding. Imagine a world where every detail matters – where the very essence of a product hinges on the finesse of its design.

This is the realm where Orange Plastics Academy comes to your aid, unraveling the mysteries of injection molding design considerations.

Consideration Number One: Mold Flow

Consideration Number One: Mold Flow

As the liquid plastic dances into the mold cavity, the stage is set for a ballet of precision. The thickness of the product walls, the cooling process, and the convergence of plastic streams – each element contributes to the graceful flow within the mold.

Here’s a closer look through the lens of mold flow analysis:

  • Wall Thickness: Thick walls risk sink marks, compromising product quality.
  • Cooling Uniformity: Uneven cooling leads to weak spots and bent walls.
  • Stream Convergence: Diverging and reconverging streams can cause flow lines.

Mold flow analysis software takes center stage, allowing designers to foresee potential defects and refine the choreography of liquid plastic, ensuring a flawless performance.

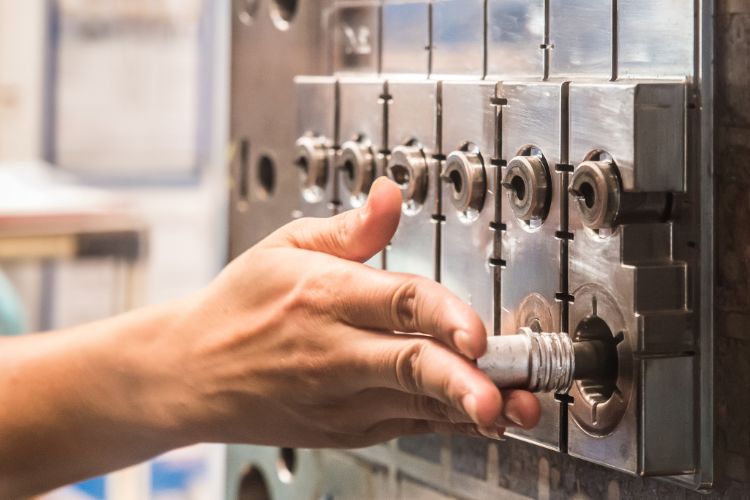

Consideration Number Two: Product Ejection

Consideration Number Two: Product Ejection

As the curtain rises on efficiency, product ejection takes the spotlight. Mold drafts, the unsung heroes, aid in the seamless removal of parts from the mold. The ideal draft angle, dictated by part depth and function, ensures a graceful exit.

Delve deeper into the intricacies:

  • Draft Angles: Offsetting angles for smooth ejection.
  • Side Action Molds: A solution when drafts clash with functionality or aesthetics.
  • Wall Optimization: Strengthening walls to withstand the impact of ejector pins.

In the grand finale, the design ensures an effortless exit, paving the way for efficient and cost-effective manufacturing.

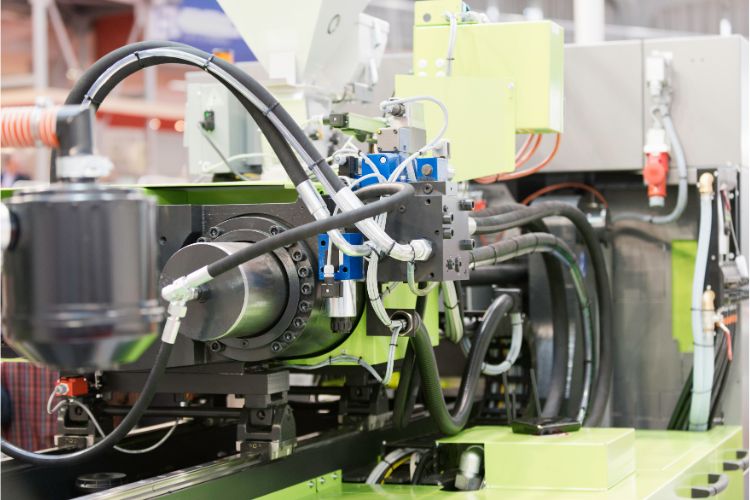

Consideration Number Three: Assembly Symphony

Consideration Number Three: Assembly Symphony

A tale of unity unfolds as multiple parts come together in a harmonious assembly. Smart design anticipates the steps, embracing the “design for assembly” approach.

Here’s the plot:

  • Minimizing Loose Parts: 2k molds and in-mold assembly reduce loose components.
  • Boss Design: Attachments and assembly made swift through well-designed bosses.
  • Sustainability Stance: A nod to the future, where single-material designs simplify recycling.

In the crescendo of assembly, smart engineering emerges as the hero, promising a more sustainable and streamlined future.

The Epilogue: Crafting a Better Tomorrow

In the grand finale of our journey, we pose a question: How can your design echo the symphony of injection molding, creating not just products, but a legacy of efficiency, sustainability, and excellence?
