Electronic Overmolding

Electronic overmolding and potting/sealant both protect electronic assemblies, but they address different production and reliability needs.

Potting or sealants typically fill or coat an assembly to block moisture and contaminants. While simple to apply, they add weight, limit reworkability, and often provide limited strain relief at cable exits or connectors.

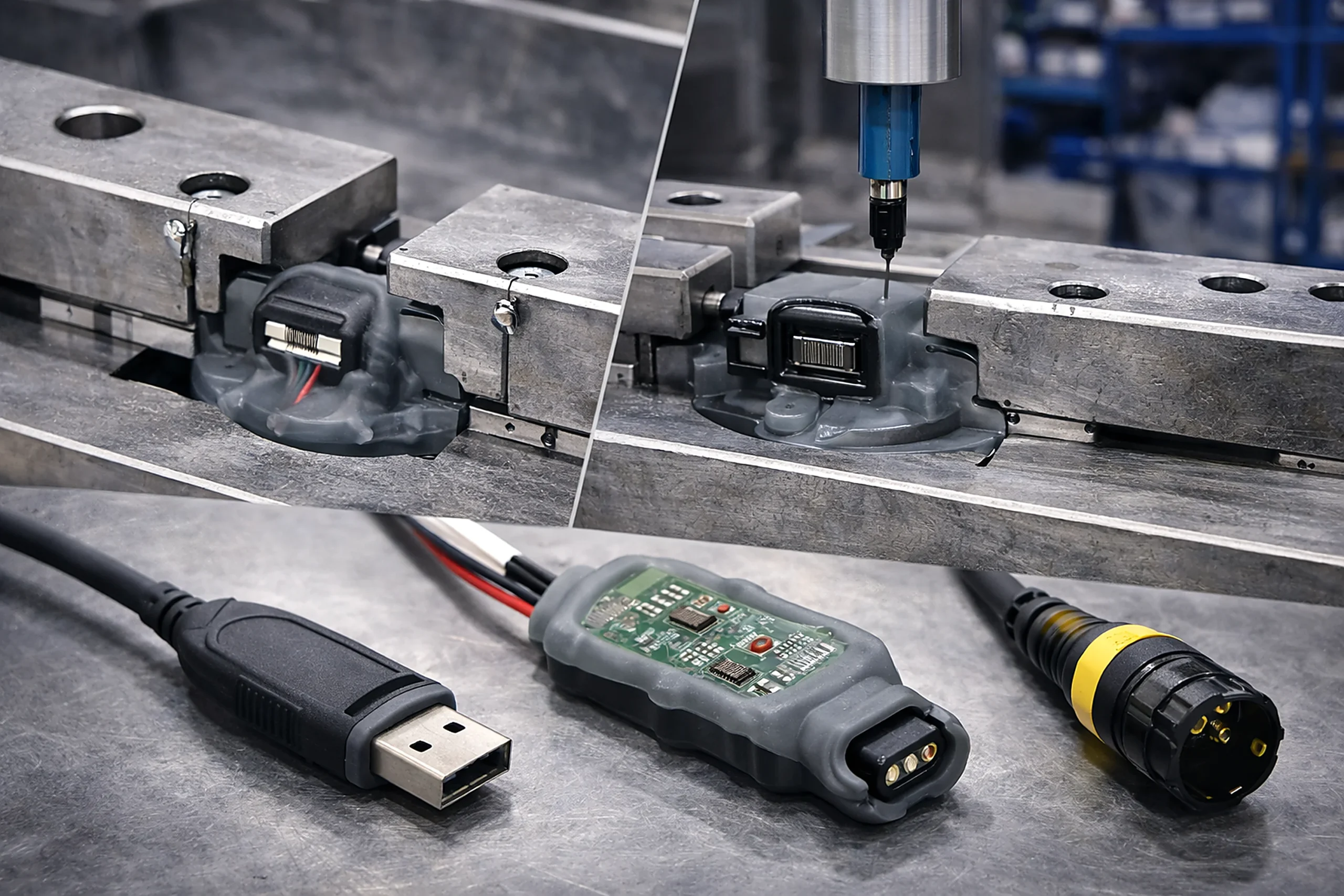

Electronic overmolding forms a defined protective layer around connectors, cables, sensors, or PCB modules using a molded thermoplastic or elastomer. This approach integrates sealing and strain relief into a single structure, reduces assembly steps, and improves repeatability in volume production.

Overmolding is commonly selected when long-term mechanical durability, controlled geometry, and scalable manufacturing are required—especially for connectors, cable exits, and hybrid electronic assemblies.

Yes. Electronic overmolding is commonly used to encapsulate cable exits and connector backshells to improve sealing and provide integrated strain relief.

During the DFM stage, cable jacket material, exit geometry, and bend radius targets are reviewed to define the overmold boundary and strain-relief profile. Tooling and fixture strategies are designed to control insert positioning and protect contact areas while forming a consistent seal around the cable-to-connector transition.

The overmolded backshell reduces moisture ingress risk, minimizes conductor fatigue under repeated flexing, and eliminates multi-piece housings or secondary sealing operations. Validation methods such as pull testing, bend cycling, or application-specific checks can be supported based on project requirements.

Yes. PCB and PCBA modules can be overmolded when the overmold boundary and sensitive areas are clearly defined during the DFM stage.

Keep-out zones are established in collaboration with the customer based on functional requirements, component height, heat sensitivity, test access, and connector interfaces. These zones identify areas that must remain free of overmold material, such as test pads, RF elements, or mating surfaces.

Fixture design and tooling strategy are then developed to protect the keep-out zones and maintain repeatable positioning of the PCB or inserts during molding. This approach allows electronic overmolding to provide mechanical protection and sealing where needed, without compromising electrical performance or serviceability.

Electronic overmolding can support designs targeting IP67 or IP68 sealing when the sealing interface and application requirements are clearly defined. The overmold itself does not automatically guarantee an IP rating; sealing performance depends on part geometry, material selection, tooling design, and validation methods.

During DFM, key inputs typically include the sealing boundary location, cable or connector interface details, operating environment, and target test conditions. Material choice and overmold geometry are selected to minimize potential leak paths, while tooling and shutoff strategies are designed to control critical sealing areas.

Final sealing performance is verified through application-specific testing defined by the customer or relevant standards. Early alignment on design inputs and validation criteria is essential for achieving consistent sealing results in production.

Material selection for electronic overmolding is driven by mechanical requirements, operating environment, and interface design rather than a single preferred resin.

Flexible elastomers such as TPU or TPE are commonly used for cable exits, strain relief, and areas requiring repeated bending or vibration resistance. Engineering thermoplastics such as PA or PBT are selected when higher stiffness, temperature resistance, or structural support is required for connector backshells or electronic housings.

Compatibility between the overmold material and the substrate—such as cable jackets, connector housings, or PCB assemblies—is evaluated during DFM. Material choice, surface condition, and tooling strategy are aligned to achieve stable overmolding performance and consistent results in production.

Flash control near terminals and fine-pitch contacts is addressed through tooling design, insert positioning, and process control rather than post-processing.

During DFM, flash-sensitive areas are identified and parting lines, shutoffs, and gate locations are planned to keep melt flow away from exposed contacts. Dedicated fixtures are used to stabilize inserts and protect terminals during molding, reducing movement and misalignment that can lead to flash.

Process parameters and material selection are tuned to maintain consistent flow and fill behavior, while visual standards and inspection checkpoints are established for critical areas. This approach helps ensure electrical interfaces remain clean and functional without secondary trimming or rework.

Validation and inspection documents are provided based on project requirements and are typically aligned during the quoting and DFM stages.

Common deliverables include first article inspection (FAI) reports, dimensional inspection records for critical features, and material certifications for resins or elastomers used in the overmolding process. For programs with traceability or quality system requirements, lot identification and inspection records can also be supported.

Inspection scope, sampling plans, and documentation formats are confirmed in advance to ensure the delivered parts meet functional, regulatory, and customer-specific requirements throughout production.

Electronic overmolding projects typically progress through defined stages to reduce risk before full production. Initial prototype or pilot runs are used to validate part geometry, overmold boundaries, material selection, and basic tooling concepts.

Based on pilot feedback, tooling, fixtures, and process parameters are refined to improve repeatability and cycle stability. Critical features such as sealing areas, cable exits, and insert positioning are verified through agreed inspection methods.

Once validation criteria are met, production tooling and process controls are finalized to support consistent output at volume. Engineering change support and documentation updates are managed throughout the transition to ensure a controlled ramp from pilot builds to stable production.
