How Does an Injection Molding Machine Work?

Have you ever wondered how everyday items, from the toothbrush in your bathroom to the casing of your electronic devices, are made?

It’s a fascinating process that involves a key player: the injection molding machine. Let’s embark on a journey to uncover the secrets behind this intricate manufacturing marvel.

The Injection Molding Cycle: A Symphony of Precision

The Injection Molding Cycle: A Symphony of Precision

Picture this – a large-scale press, a mold tightly shut, and liquid plastic injected with precision. This is the essence of an injection molding machine, comprising three crucial components: a material hopper, a heating unit, and an injection ram or screw-type plunger.

Now, let’s break down the balletic sequence of events – the injection molding cycle.

  • Closing the Mold: The dance begins as the machine closes the mold, setting the stage for the magic to unfold.
  • Injecting Liquid Polymer: Like a maestro conducting an orchestra, the machine injects liquid polymer into the mold cavity, shaping the product’s future form.
  • Maintaining Holding Pressure: As the cavity is filled, a holding pressure is maintained – a critical step to compensate for material shrinkage.
  • Screw’s Turn: The screw turns, preparing the next shot and retracting to the front, readying for the next act.
  • Cooling Process: After the cooling process, the mold opens, and the ejector rod pushes the ejector plate up for the next shot.

Distinguishing Factors: Clamping Pressure

Distinguishing Factors: Clamping Pressure

Now that we’ve unraveled the injection molding dance, let’s explore the differences among these machines. The key differentiator is clamping pressure – the force that keeps the mold closed during the process.

It can range from 5 tons to over 3,000. The challenge lies in finding the sweet spot to ensure flawless production.

Determining the required pressure involves calculating the projected area of the custom part being molded. A rule of thumb: multiply the surface area in square inches by 2.5 and add a safety factor of 10 percent.

But wait, the raw material also has a say; stiffer plastics demand more injection pressure.

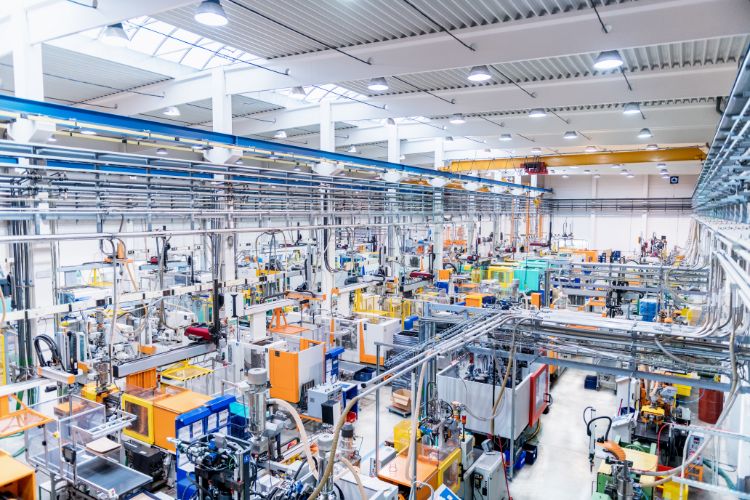

Beyond Mass Production: The Volume Conundrum

Beyond Mass Production: The Volume Conundrum

Injection molding traditionally catered to large volumes, but times have changed. While startup investments are substantial, companies have optimized for low volume injection molding.

You no longer need to manufacture millions to break even – the game has shifted.

With volumes as low as 1,000 units, injection molding becomes a feasible option. Your molding partner assists in selecting the right mold design and material tailored to your required product amount.

Conclusion: Crafting Tomorrow’s Essentials Today

As we conclude our exploration of injection molding machines, we’re left in awe of the meticulous dance of components and the strategic interplay of pressure and volume. The magic unfolds, and everyday objects materialize before our eyes.

So, the next time you hold a plastic product, ponder the journey it undertook, and ask yourself: How has injection molding shaped the world around us?
