What is GD&T

Once upon a time in the realm of mechanical design and manufacturing, a tale unfolded that involved a complex interplay of costs, materials, and manufacturing technologies.

Amidst this intricate process, a paramount concern emerged: ensuring that all crafted components seamlessly assembled and operated as intended. In the quest for precision, tolerance became a crucial aspect of the design process.

The Challenge of Dimensional Tolerance

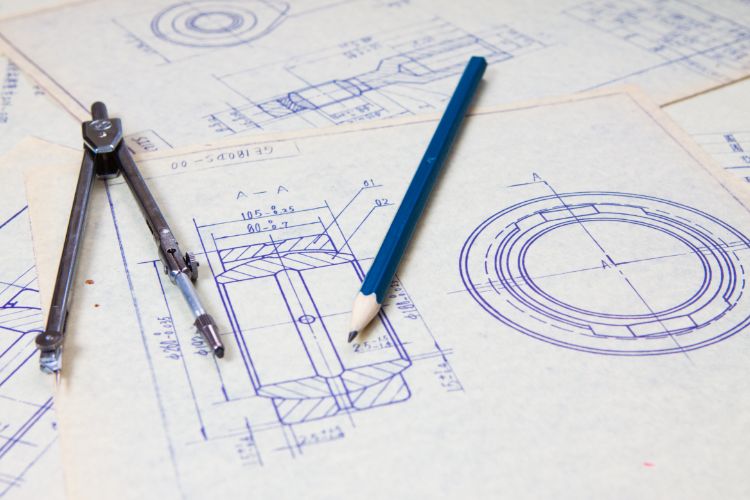

The Challenge of Dimensional Tolerance

Defining tolerance is straightforward using dimensional tolerances, which specify the allowable deviation from a baseline dimension. However, the limitations of dimensional tolerances arise as they fail to accurately represent how components function in real-world applications.

For instance, ensuring a surface is perfectly flat for airtight sealing or controlling the perpendicularity of a hole’s axis cannot be adequately expressed through dimensional tolerances alone.

Introducing GD&T – Geometric Dimensioning and Tolerancing

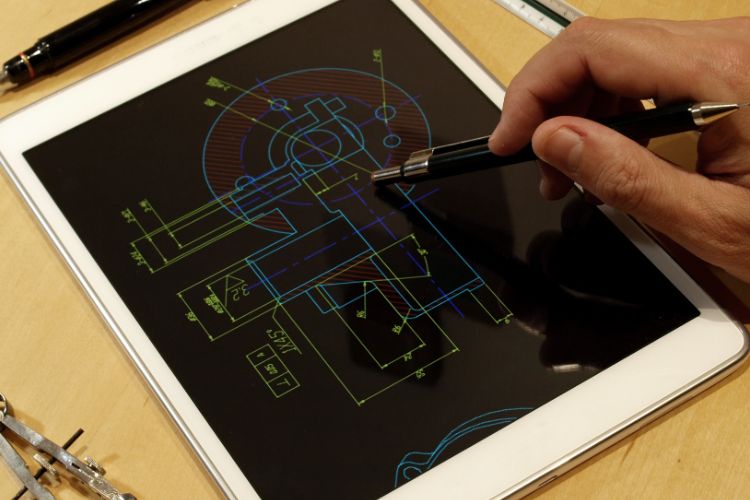

Geometric Dimensioning and Tolerancing

Enter Geometric Dimensioning and Tolerancing, affectionately known as GD&T. Unlike dimensional tolerances, GD&T considers how components will be used, reflecting the functional requirements in the design.

It employs symbols representing 14 geometric characteristics to define geometric tolerances, categorizing them into shape, orientation, position, profile, and runout.

  • Shape: Specifies the form of the feature.
  • Orientation: Controls the tilt or angle of a feature.
  • Position: Determines the location of a feature.
  • Profile: Governs the overall shape of a feature.
  • Runout: Ensures circular elements maintain a consistent relationship.

Distinguishing Surface and Size Features

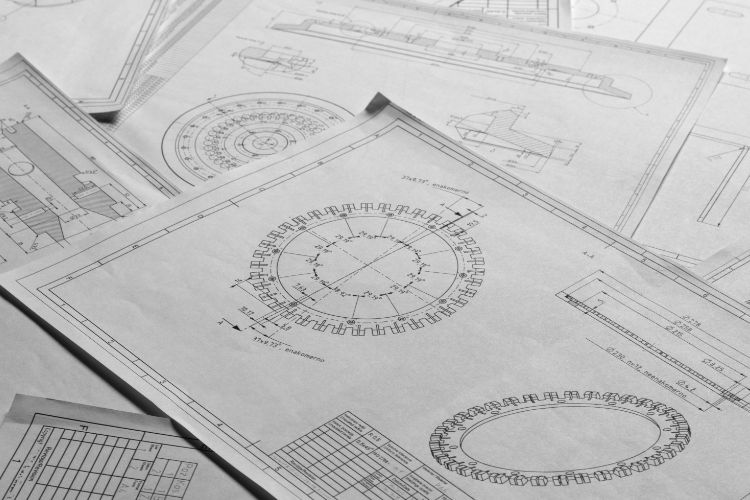

Distinguishing Surface and Size Features

Understanding GD&T hinges on distinguishing between surface and size features. Surface features refer to features made up of surfaces, while size features are defined by size dimensional tolerances.

It is crucial to differentiate these terms, as the application of geometric tolerances varies based on whether they are applied to surface or size features.

Unveiling the Feature Control Frame

Unveiling the Feature Control Frame

GD&T relies on the Feature Control Frame to define a feature’s tolerance. This frame encapsulates all information required to control the shape of a feature.

One must differentiate between surface and size features, utilizing indicators like datum reference frames or direct dimensioning on size features.

Navigating the Feature Control Frame

Navigating the Feature Control Frame

The Feature Control Frame’s cells convey essential information. The first cell designates one of the 14 geometric symbols representing the controlled feature. Subsequent cells specify the applied tolerance and the datum used as a reference during inspection.

To enhance precision, mathematical symbols can be added to define a more specific tolerance, weaving mathematical clarity into the fabric of GD&T.

GD&T Inspection Techniques

GD&T Inspection Techniques

The application of GD&T in real-world scenarios involves meticulous inspection techniques. For example:

  • Flatness Tolerance: Inspected using dial gauges, ensuring all points on the surface lie within the specified tolerance range.
  • Straightness Tolerance: Examined using Coordinate Measuring Machines (CMM), where probes traverse along individual lines, ensuring conformity to defined straightness criteria.
  • Cylindricity Tolerance: Verified by rotating the part and measuring deviations along its length.

Conclusion: The Harmonious Symphony of Precision

In the grand tapestry of mechanical design, GD&T emerges as the composer’s score, orchestrating a harmonious symphony of precision. It goes beyond mere dimensional constraints, delving into the intricate nuances of geometric tolerances.

As we unravel the secrets of GD&T, one question lingers in the air: How will you incorporate the language of precision into your next mechanical masterpiece?
