Knowing how to clean injection mold surfaces and internal features is essential for stable plastic part quality. Residue, oil, carbon buildup, and blocked vents can cause black spots, burn marks, sticking, and inconsistent appearance. We reduce these risks through controlled cleaning, careful inspection, and preventive mold maintenance rather than a simple surface wipe.
To clean an injection mold, trained staff first make the equipment safe, inspect the mold, identify the contamination, and select non-damaging tools. We commonly use soft cloths, copper brushes, approved mold cleaners, and dry compressed air where appropriate. We pay special attention to vents, cavities, cores, parting lines, ejector areas, and cooling connections.
In our daily mold factory and injection molding workshop, we treat cleaning as part of production stability. The correct process depends on the resin, mold steel, surface finish, contamination, and mold structure. The following sections explain our practical approach and show buyers what they should expect from a responsible supplier.
How Do We Clean an Injection Mold Safely?
A mold contains precision-machined surfaces, moving components, sharp edges, and delicate venting features. A careless cleaning attempt can turn minor contamination into expensive surface damage. We therefore begin with safety and inspection, not with a scraper, solvent, or cleaning cloth.
We clean an injection mold safely by stopping production, following the applicable lockout and safety procedure, allowing trained staff to assess the mold, and selecting tools that will not alter critical surfaces. We remove loose residue first, clean targeted areas carefully, dry and protect the mold, and verify its condition before production resumes.
1. We make the machine and mold safe
We never treat mold cleaning as an informal task performed while the machine remains in an unsafe state. Our technicians follow the factory’s shutdown, isolation, and lockout procedures based on the machine, mold, and maintenance scope.
The team also considers residual heat and pressure. Injection molds can retain heat after production stops, while hydraulic, pneumatic, or spring-loaded mechanisms may still present hazards. Complex molds can include slides, lifters, hot-runner systems, unscrewing units, and other moving components.
We require trained maintenance staff to decide whether the mold can receive minor in-machine cleaning or must be removed and opened in a controlled maintenance area.
2. We identify the contamination
We inspect before we clean because different deposits require different responses. Common findings include:
- Resin residue near gates or vents
- Carbon deposits in venting grooves
- Grease or oil migration around moving components
- Dust and loose particles on exposed surfaces
- Rust or early oxidation after unsuitable storage
- Plate-out caused by resin additives
- Condensation or moisture
- Residue from a previous cleaning product
We also review recent molded parts. A defect pattern often tells us where to look. For example, a burn mark near the end of fill may lead us to inspect local venting, while recurring oil stains may point toward excessive lubrication or a leaking component.

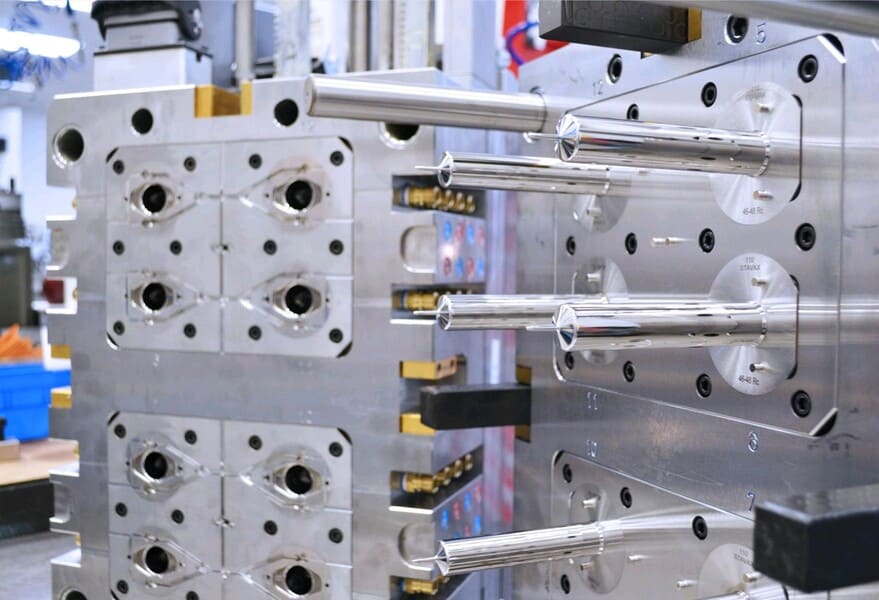

3. We choose the least aggressive suitable method
Our general rule is to start gently. We commonly use lint-free or soft cloths, copper or other mold-safe brushes, approved mold-cleaning products, and controlled dry air where factory procedures permit it. We choose products according to mold steel, coatings, surface texture, resin, and the cleaner manufacturer’s instructions.
| Cleaning option | Common use | Main caution |
|---|---|---|
| Soft, lint-free cloth | Loose oil, cleaner residue, and exposed surfaces | The cloth must not leave fibers |
| Copper or mold-safe brush | Deposits in suitable non-cosmetic areas | Staff must avoid changing edges or textures |
| Approved mold cleaner | Resin film, grease, or specific contamination | Compatibility must be verified |
| Dry compressed air | Loose particles and cleared passages | Staff need eye protection and controlled pressure |
| Non-abrasive wooden or plastic tool | Selected soft deposits | Staff must avoid gates and precision edges |
We do not recommend hard scraping, grinding, abrasive paper, or harsh chemicals as default methods. These approaches can scratch polished cavities, round vent edges, damage textures, attack seals, or change dimensional surfaces. If basic cleaning cannot remove a deposit, trained staff should investigate the cause and decide whether controlled mold repair is necessary.
4. We inspect after cleaning
Our work does not end when the mold looks clean. We inspect for remaining contamination, corrosion, scratches, blocked vents, damaged parting lines, and abnormal wear. We then apply suitable protection or lubrication only where required.
Before releasing the mold, we may conduct a mold trial or first-piece inspection. The scope depends on what we cleaned and whether we removed or adjusted mold components. This final check connects maintenance activity to actual part quality.

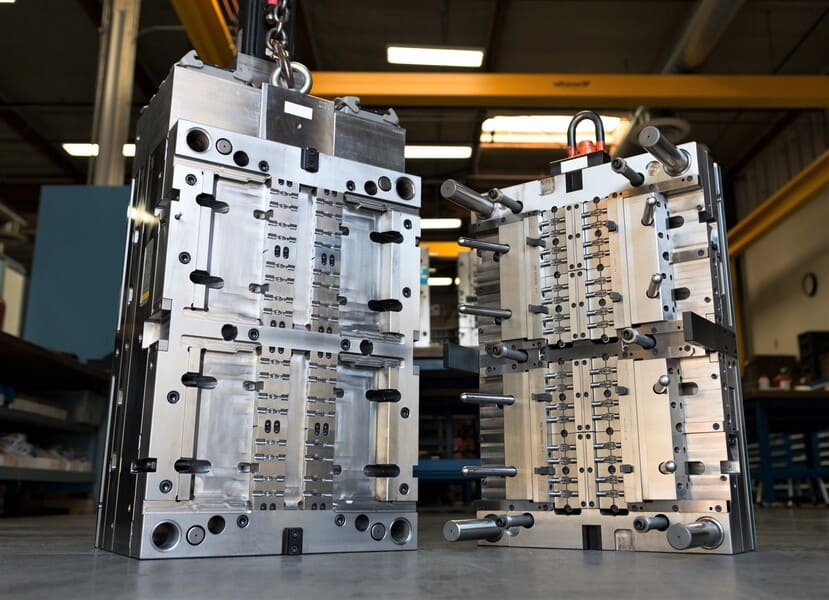

Which Areas Matter Most When We Clean Injection Mold Components?
Visible cavity surfaces receive attention because they directly affect appearance. However, contamination often causes greater trouble in less obvious locations. If a team only wipes the shiny surfaces, blocked vents, dirty ejector areas, and deposits around moving components can continue to create defects.
When we clean injection mold components, we focus on cavities, cores, vents, parting lines, gates, runners, ejector pins, slides, lifters, and accessible cooling connections. Vents require special attention because small deposits can restrict gas escape and contribute to burn marks, short shots, unstable filling, or unwanted pressure inside the cavity.
Vents and venting grooves
Vents allow displaced air and process gases to leave the cavity as molten plastic fills it. Their dimensions are intentionally small, so a thin deposit can reduce their effectiveness. We commonly find contamination from resin degradation products, additives, dust, and repeated molding cycles.
We clean venting features carefully because aggressive tools can deepen, widen, or round them. Any dimensional correction should be treated as skilled mold work, not routine cleaning. When burn marks return after cleaning, our engineers investigate other possible causes, such as:
- Injection speed and filling profile
- Resin temperature and residence history
- Material drying or contamination
- Gate position and runner balance
- Clamp conditions
- Vent depth, width, location, and condition
Cleaning can restore an existing vent, but it cannot correct an inadequate vent design by itself.
Cavity, core, and textured surfaces
Cavity and core surfaces transfer shape and finish to the molded component. We inspect them for films, grease, resin deposits, fingerprints, corrosion, and embedded particles. Polished optical surfaces, cosmetic Class A surfaces, and fine textures require especially cautious handling.
We avoid assuming that one chemical is safe for every finish. A cleaner suitable for an ordinary steel plate may be unsuitable for a coated, polished, textured, or plated cavity. Our technicians check the mold specification and approved maintenance procedure before using a product.
Parting lines and shutoffs
Contamination on parting surfaces can prevent the mold from closing correctly. It may contribute to flash, localized damage, or pressure on delicate shutoffs. We remove loose debris without rounding edges or disturbing fitted surfaces.
If we find repeated residue or metal marks, we do not simply clean and restart. We check for alignment problems, wear, trapped plastic, damaged guides, or excessive clamping conditions.
Gates, runners, and hot-runner areas
Cold slug material, degraded resin, or stringing can collect near gates and runner features. We inspect these areas without forcing hard tools into precision openings. Hot-runner maintenance requires additional training because heaters, wiring, seals, tips, and manifolds can be damaged through careless disassembly.
Ejector pins, slides, and lifters
Moving mold parts need controlled lubrication, but excess oil or grease can migrate into the cavity and stain parts. We clean accumulated residue and apply only the correct lubricant in the intended area.
I have seen a minor oil mark disappear after cleaning and correcting the lubrication practice. That experience is a useful reminder: the source of contamination matters more than the visible stain alone.
How Does Poor Injection Mold Cleaning Cause Part Defects?
Buyers often see a cosmetic defect but do not see the mold condition behind it. A supplier may adjust processing parameters repeatedly while contamination remains in the vent, cavity, or ejector system. This wastes time and can hide the true cause of unstable production.
Poor injection mold cleaning can contribute to black spots, oil stains, burn marks, sticking, flash, short shots, gloss differences, and inconsistent surface appearance. Cleaning is not the only possible solution to these defects, but disciplined inspection helps us separate contamination-related problems from material, process, design, and mechanical causes.
Black spots and dark contamination
Black spots may come from degraded resin, contaminated raw material, dead spots in the barrel or hot runner, dirty regrind, or deposits released from the mold. We therefore trace the defect rather than automatically blaming one source.
When black spots appear in a consistent location on the part, we inspect nearby gates, runners, vents, and cavity details. When the marks move randomly, we may investigate the material-handling and plasticizing systems as well.
Burn marks
Burn marks often occur when trapped air or gas heats under compression. Blocked or contaminated vents can increase this risk. Cleaning the vent may improve gas release, but we also review processing and mold design if the defect continues.
A responsible response includes several checks:
- We document where the burn mark appears.
- We inspect local vents and the end-of-fill area.
- We review fill behavior and process settings.
- We confirm the material condition.
- We test and inspect parts after corrective action.
This approach prevents us from treating cleaning as a universal cure.
Oil stains and grease marks
Excess lubricant, leaking hydraulic components, contaminated protective coatings, or residue around ejector pins can transfer to plastic parts. These marks are especially serious for white, transparent, painted, plated, or medical-related components.
We clean the affected areas and identify why the oil reached the cavity. If the team only wipes the mold, the stain will usually return. We may need to correct the lubricant quantity, repair a leak, replace a seal, or revise the maintenance practice.
Sticking and release problems
Residue can increase friction or interfere with the intended surface condition. Parts may begin sticking to the cavity, core, lifters, or ejector pins. However, sticking can also result from insufficient draft, surface damage, excessive packing, inadequate cooling, or shrinkage behavior.
Our technicians inspect the mold before making aggressive adjustments. Hard polishing or grinding can change dimensions and surface appearance, so we treat such work as a controlled repair that requires approval.
Defect-to-maintenance relationship
| Part defect | Possible cleaning-related cause | Other causes we check |
|---|---|---|
| Black spots | Carbon or degraded resin deposits | Material contamination or barrel degradation |
| Burn marks | Blocked or dirty vents | Fill speed, temperature, or poor vent design |
| Oil stains | Excess lubricant or leaking oil | Contaminated handling equipment |
| Sticking | Surface residue or dirty ejector system | Draft, packing, cooling, or surface damage |
| Flash | Debris on parting line | Mold wear, alignment, or clamp conditions |
| Short shots | Restricted venting | Flow length, gate size, pressure, or material |
| Gloss variation | Film or uneven contamination | Texture, temperature, and process variation |
We use this table as a starting point, not a final diagnosis. In many production cases, several factors interact. A clean mold gives us a stable baseline from which we can troubleshoot those factors.
How Often Should We Clean Injection Mold Systems?
A fixed cleaning interval sounds convenient, but it can create either unnecessary downtime or overdue maintenance. A glass-filled engineering resin, a transparent cosmetic resin, and a general-purpose polypropylene can produce very different maintenance needs. We therefore combine scheduled preventive maintenance with condition-based inspection.
We determine injection mold cleaning frequency from resin behavior, production volume, vent condition, part quality, mold complexity, surface requirements, and storage conditions. Operators may perform approved routine checks during production, while trained technicians complete deeper cleaning at planned intervals or when defect trends indicate contamination, wear, or blocked venting.
We consider the material and process
Some resins and additives create deposits faster than others. Flame-retardant materials, filled compounds, color changes, and materials that are sensitive to degradation may require closer monitoring. High temperatures or long residence times can also increase residue, although the exact effect depends on the process and resin.
We pay closer attention when production involves:
- Flame-retardant or heavily filled compounds
- Light-colored, transparent, or high-gloss parts
- Resins with volatile additives
- Frequent material or color changes
- High-cavity molds
- Fine vents or complex flow paths
- Hot-runner systems
- Medical, automotive, or appearance-critical components
We use part quality as an early warning
Operators are often the first people to notice a change. A new black speck, rising ejection force, local burn mark, unusual mold sound, or repeated oil stain can indicate that inspection is needed.
We encourage teams to record trends instead of waiting for a major defect. Useful production records include:
- Shot count since maintenance
- Cleaning date and maintenance scope
- Defect type and cavity number
- Areas where deposits were found
- Tools and approved cleaning products used
- Parts replaced or repaired
- Mold trial and inspection results
- Technician and reviewer names
These records help us determine whether the interval is suitable. They also reveal recurring problems that cleaning alone cannot solve.
We clean before storage and after extended storage
A production mold may need cleaning and protection before it enters storage. Staff should remove process residue, inspect for moisture, apply an appropriate rust preventive where required, and control the storage environment. Before the mold returns to production, technicians should remove protective residue according to the approved procedure.
We do not apply heavy protective material carelessly to molding surfaces. Excess product can contaminate the first production parts or enter vents and moving systems.

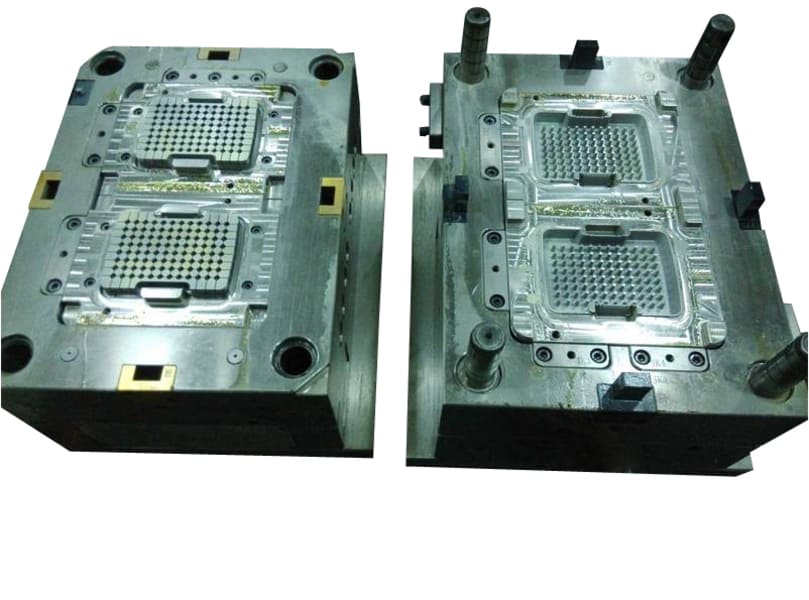

We separate maintenance levels
We commonly divide work by scope:
| Maintenance level | Typical focus | Responsible personnel |
|---|---|---|
| Routine production check | Visible residue, part quality, and basic mold condition | Trained operator or technician |
| Planned cleaning | Vents, parting lines, cavities, cores, and moving areas | Mold maintenance technician |
| Detailed preventive maintenance | Disassembly, wear inspection, measurements, and component checks | Qualified mold team |
| Repair or refurbishment | Surface restoration, vent correction, or component replacement | Experienced mold maker or engineer |
This structure keeps minor cleaning controlled while ensuring that deeper work receives the correct expertise.
How Can Buyers Evaluate a Supplier’s Mold Cleaning Standards?
Overseas buyers rarely need to clean production molds themselves. However, buyers should understand enough to distinguish disciplined preventive maintenance from emergency defect correction. A supplier that cannot explain its cleaning records, vent inspections, or mold-release process may expose a project to avoidable quality risks.
Buyers can evaluate mold cleaning standards by asking for the preventive maintenance plan, maintenance records, cleaning responsibilities, vent inspection methods, mold storage controls, and post-maintenance verification process. Strong suppliers connect mold condition to cavity-specific quality data and can explain how they prevent recurring defects rather than only cleaning after rejection.
Questions we recommend asking
Buyers can ask practical questions without requesting confidential factory information:
- How does the supplier define routine and preventive mold maintenance?
- Who is authorized to clean cavities, vents, and moving components?
- Does the supplier record shot counts and maintenance dates?
- How does the team prevent damage to polished or textured surfaces?
- How does the supplier inspect vents for deposits or blockage?
- What happens when black spots, burns, or oil stains recur?
- Does the team conduct first-piece inspection after significant maintenance?
- How are molds cleaned and protected before storage or shipment?
- Can the supplier trace defects to a specific cavity?
- How does the team control lubricants and rust-preventive products?
A credible supplier should provide clear, bounded answers. We would be cautious if a factory claimed that every mold receives exactly the same cleaning method or interval.
Evidence buyers can review
Maintenance discipline should leave objective evidence. Depending on the project, buyers may review:
- Preventive maintenance procedures
- Mold history cards
- Cleaning and repair logs
- Shot-count records
- Before-and-after photographs
- First-article or trial reports
- Cavity-specific inspection results
- Nonconformance and corrective-action reports
- Mold storage and rust-prevention procedures
- Training or authorization records
I have found that a simple maintenance log often reveals more than a polished presentation. Consistent dates, defect descriptions, actions, and verification results show whether a factory manages its molds systematically.
We connect maintenance to quality control
A good maintenance system does not exist separately from production quality. It should connect mold history with dimensional inspection, cosmetic standards, process records, and customer complaints.
For example, if cavity 6 develops recurring burn marks, the supplier should be able to review its vent condition, maintenance history, processing data, and inspection results. Repeated cleaning without root-cause analysis is not a strong corrective action.
Buyers should also ask how the supplier handles customer-owned tooling. The agreement should clarify responsibility for scheduled maintenance, repairs, major refurbishment, spare components, storage, and approval of changes to critical mold features.
Frequently Asked Questions
Can we clean an injection mold while it is still in the molding machine?
We may perform limited, approved cleaning while a mold remains installed, but only after we follow the required machine safety and isolation procedures. Deeper cleaning usually requires controlled access or mold removal. Trained staff must decide the correct approach based on heat, pressure, moving components, and the maintenance scope.
What is the best cleaner for an injection mold?
We do not consider one cleaner best for every mold. The suitable product depends on the mold steel, coating, texture, polish, resin, deposit, seals, and supplier instructions. We use approved mold-cleaning products and verify compatibility before application. We avoid harsh chemicals as an automatic first choice.
Can a steel brush be used to clean mold cavities?
We generally avoid hard steel brushes on precision cavity surfaces because they may scratch, alter, or contaminate the finish. We commonly select softer, mold-safe tools such as lint-free cloths or suitable copper brushes. Trained staff should approve the tool according to the surface and contamination.
Does cleaning solve injection molding burn marks?
Cleaning blocked vents may reduce burn marks when poor gas release contributes to the defect. However, we also check filling speed, material condition, melt history, gate design, and vent capacity. If burning returns quickly, the mold or process may require a deeper engineering review.
Should buyers request mold maintenance records?
We recommend that buyers request appropriate maintenance evidence for important tooling. Shot counts, cleaning dates, defect records, repairs, and trial results show whether the supplier follows preventive maintenance. These records are especially useful for multi-cavity, automotive, medical, and appearance-critical projects.
Conclusion
Understanding how to clean injection mold systems helps buyers evaluate more than workshop housekeeping. Proper cleaning protects vents, cavities, moving components, and precision surfaces while reducing risks such as black spots, oil stains, burn marks, and sticking. We believe the strongest approach combines safe procedures, non-damaging tools, documented preventive maintenance, and post-cleaning quality verification. If you need custom tooling or molded parts, ask us to review your mold design, material, maintenance expectations, and production quality requirements through a free DFM discussion.
