Polypropylene Injection Molding
PP parts for housings, clips, and functional components. DFM recommendations and quality documentation on request.
ISO 9001:2015 | ISO 13485 | IATF 16949:2016 | AS9100D
PP Injection Molding Service
We provide injection molding service for custom PP parts from prototypes to production. Our team supports PP grade selection, DFM feedback, and process planning for shrinkage and warpage control to improve fit and repeatability. Dimensional inspection and documentation can be provided on request based on your CTQ features.
Polypropylene (PP) Material Properties
| Property | Typical Range + Design/Molding Implication |
|---|---|
|
Density |
~0.90 g/cm³ — Lightweight parts reduce overall product weight and can help lower shipping cost.
|
|
Tensile Strength |
25–40 MPa — Suitable for light to medium load-bearing PP components; reinforced/filled PP can be used when higher stiffness or strength is required. |
|
Flexural Modulus |
1,300–1,800 MPa — Balance of stiffness and flexibility; optimize ribs and wall thickness to control deflection and reduce sink/warp risk. |
|
Impact Resistance |
Good (grade-dependent) — Copolymer or impact-modified PP is recommended for snap-fits, clips, and parts exposed to drops or low-temperature use. |
|
Heat Deflection Temperature (HDT) |
100–110°C (unfilled) — Reliable for moderate heat environments; for higher thermal needs, evaluate filled/modified PP or alternative resins. |
|
Chemical Resistance |
Excellent — Performs well against many acids, alkalis, and cleaning agents; common for housings, caps, and fluid-contact external parts. |
|
Moisture Absorption |
<0.01% — Minimal moisture uptake supports stable processing and dimensional consistency; drying is typically unnecessary unless specified by the resin supplier. |
|
Typical Shrinkage |
1.0–2.5% (varies by grade/filler) — Shrinkage must be compensated in tooling; CTQ dimensions should be confirmed during DFM to manage warpage and tolerance risk. |
|
Living Hinge Suitability |
Excellent — Preferred for molded living hinges; hinge thickness, gate location, and flow direction should be planned to maximize hinge life. |
Not sure if PP is right for your application? Our engineering team can review your design and recommend the best grade and molding approach for your requirements.

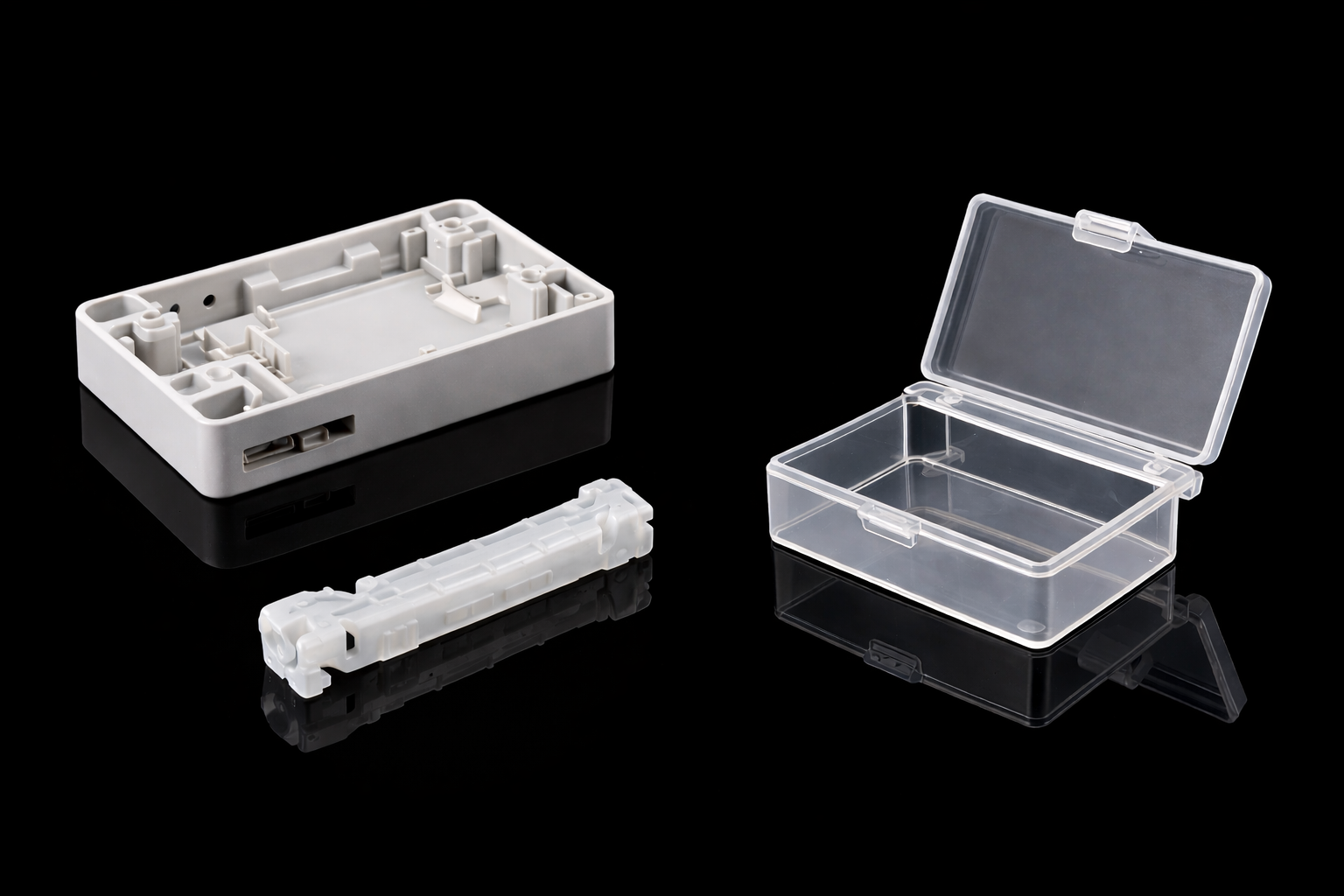

Polypropylene Injection-Molded Parts Gallery
Thin-Wall PP Housing
Uniform wall thickness with controlled shrinkage for dimensional stability.
Transparent PP Fluid Component
Molded with flow and gate planning to reduce weld lines and visual defects.
Multi-Feature PP Functional Part
Complex geometry with ribs and bosses designed for strength and assembly.
PP Snap-Fit Component
Flexible features optimized to withstand repeated assembly cycles.
Flat PP Panels / Covers
Warpage-controlled design for flatness and cosmetic consistency.
PP Living Hinge Component
One-piece hinge designed for fatigue resistance and long cycle life.
Why Choose Kemal for PP Injection Molding
PP-Focused Tooling & Molding Experience
Hands-on experience in PP tooling design and injection molding, including thin-wall parts, snap-fits, and living hinge applications.
Integrated Tooling to Production
Tool design, mold fabrication, PP injection molding, and secondary operations coordinated in-house to reduce handoff risk and lead time.
ISO-Controlled Process & Documentation
ISO 9001, ISO 13485, IATF 16949, and AS9100D systems supporting controlled processes, inspection records, and traceability when required.
PP Grade & Additive Selection Support
Support for homopolymer, copolymer, and modified PP grades, including impact-modified and filled options based on mechanical and environmental requirements.
DFM Review for Shrinkage & Warpage Control
DFM feedback focused on wall thickness, gate strategy, shrinkage compensation, and warpage risk before tooling release.
Flexible Volumes from Prototype to Production
Flexible production planning supporting prototype builds, pilot runs, and volume manufacturing without unnecessary order constraints.
PP Injection Molding Design Considerations (Reviewed During DFM)
During quoting, our engineers review the following items in DFM to identify molding risks and recommend adjustments before tooling is released.
DFM Check Item | What We Verify (and Why It Matters) |
|---|---|
Wall Thickness Consistency | Review wall transitions and thick-to-thin areas to reduce sink marks, voids, and warpage risk while maintaining part strength. |
Draft for Ejection & Surface Finish | Confirm draft based on surface finish (smooth vs textured) to prevent drag marks, sticking, and ejection damage. |
Corner Radii & Stress Concentration | Check internal/external radii and sharp corners to reduce cracking risk and improve flow stability in high-stress areas. |
Shrinkage Planning for CTQ Features | Identify CTQ dimensions (fits, sealing surfaces, snap features) and plan tooling compensation to improve dimensional predictability. |
Gate Strategy & Flow Balance | Recommend gate style/location to manage flow path, reduce weld lines on cosmetic/functional areas, and improve fill consistency. |
Weld Lines & Cosmetic Risk Areas | Flag potential knit lines, flow marks, and air traps on visible surfaces and critical load paths, then adjust gating/parting as needed. |
Rib/Boss Design for Assembly Strength | Review rib thickness, boss support, and fastening features to minimize sink/warp and improve screw retention and assembly robustness. |
Snap-Fit & Flexible Feature Durability | Evaluate latch geometry and flex zones to reduce stress whitening and fatigue cracking over repeated assembly cycles. |
Living Hinge Geometry (If Applicable) | Check hinge thickness, flow direction, and gate orientation to improve hinge life and reduce brittle failure. |
Moisture/Drying Assumptions | Confirm resin handling requirements (typically no drying for PP under standard conditions) to avoid surface defects caused by contamination or improper storage. |
Our engineering team can review your CAD files and recommend the best design adjustments for PP injection molding.
Learn More About Polypropylene Injection Molding
Explore key considerations for PP parts—grade selection, shrinkage planning, snap-fits, and living hinge design. Use the guide to understand typical risks and what we review during DFM.
Comprehensive Plastic Part Services
We provide early-stage design for manufacturability (DFM) analysis to optimize wall thickness, draft angles, and gate placement. This helps identify risks upfront and reduces costly mold changes later.
From single- to multi-cavity and hot runner molds, we build tooling that matches your production needs. Steel selection and surface finishes ensure durability and precision over the mold’s lifetime.
We offer standard molding, insert molding, and overmolding options. Each run is monitored with scientific process controls and full batch traceability to guarantee consistent results.
Choose from painting, pad printing, laser marking, and UV coating. ABS is especially well-suited for surface finishes, making it ideal for branded housings and visible parts.
Every part goes through strict IQC, IPQC, and OQC processes. We provide dimensional reports and compliance documentation to meet international standards.
Assembly & Delivery
From sub-assemblies to custom packaging, we streamline the final steps before shipping. Global logistics support ensures your parts arrive efficiently and ready to use.
