PET Injection Molding
PET injection molding services for custom engineered plastic parts.

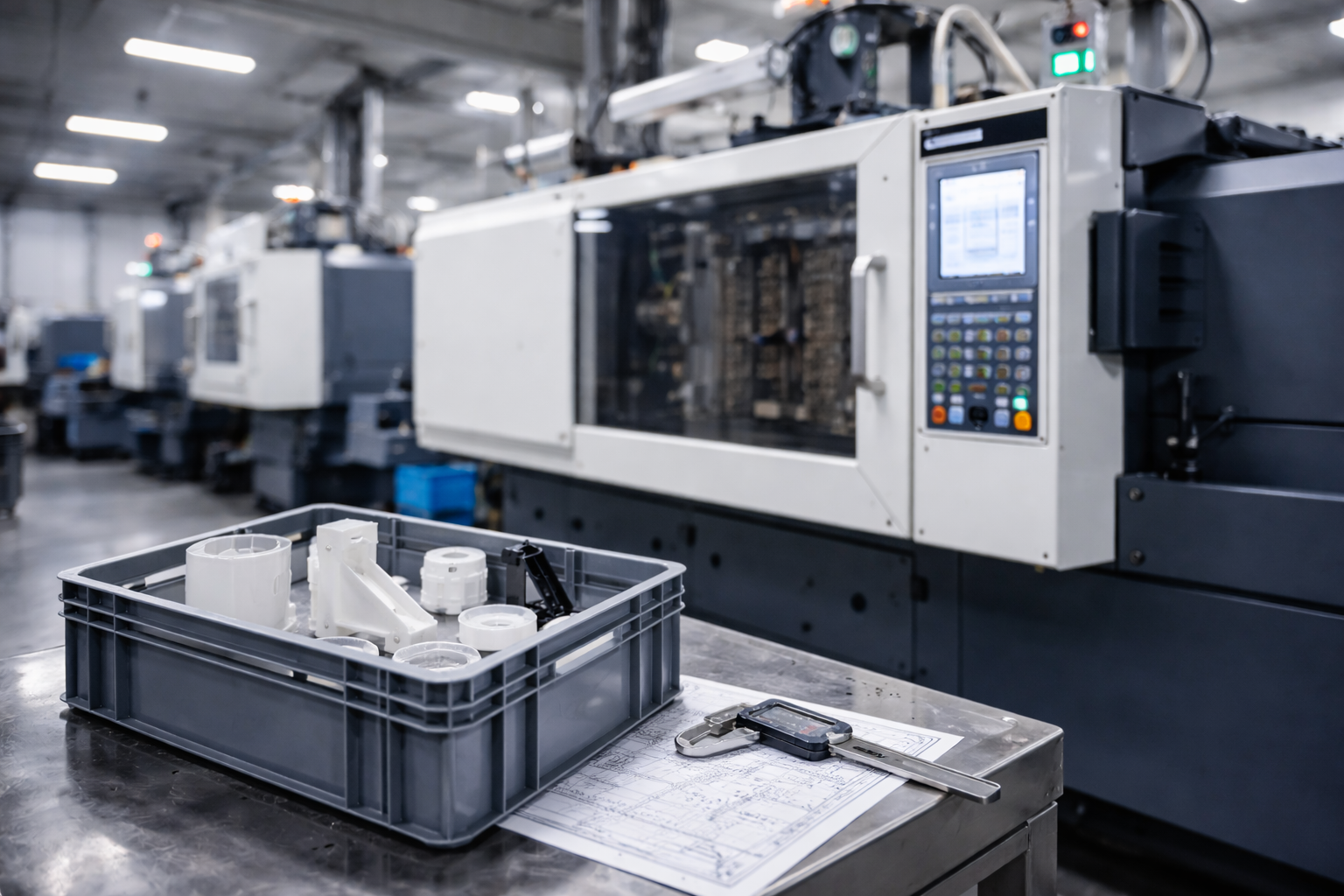

PET Injection Molding Service
We provide PET injection molding service for custom plastic parts, supporting both prototype builds and production programs.
- PET part molding (prototype to production)
- DFM + tooling coordination
- Drying and process setup
- CTQ inspection planning
- Secondary Processing on request
Kemal PET Injection Molding Capabilities
| Capabilities | Specification |
|---|---|
|
Press Tonnage Range |
50 – 1,300 tons
|
|
Supported Materials |
PET, PETG, rPET, glass-fiber-reinforced PET (grade-dependent) |
|
Part Types |
Housings, structural parts, gears/inserts, functional components |
|
Part Size Range |
Small precision parts to medium-size components (confirmed at quote) |
|
Wall Thickness |
Typical 0.8–5.0 mm (geometry-dependent) |
|
Tolerance Capability |
Up to ±0.02–0.05 mm on CTQ features (design-dependent) |
|
PET Process Controls |
Drying control + temperature-managed molding + PET-optimized gate/vent/cooling strategy |
|
Mold Types Supported |
Single / multi-cavity, hot runner, family molds, bridge tools |
|
Tooling Support |
DFM review, gate/runner recommendations, tooling build coordination |
|
Quality & Inspection |
CTQ inspection planning; dimensional reports / CMM data available on request |
|
Traceability Options |
Resin batch and lot tracking when required |
|
Secondary Operations |
Inserts, marking, light assembly, packaging (as needed) |
|
Lead Time |
Quoted per part/tool/volume; sampling and production schedules confirmed during quoting |
Typical PET Parts We Mold
Housings & Covers
Cosmetic surfaces and fit lines are often CTQ across mating features. We review gate location, venting, and cooling balance before sampling to stabilize appearance and fit.
Electrical Components & Insulators
Geometry repeatability and clean shut-offs drive assembly yield. We define CTQ features early and align processing + inspection to your drawing and fit requirements.
Brackets & Structural Supports
Stiffness parts are sensitive to shrinkage-driven warpage and mounting distortion. We tune cooling layout and packing strategy to keep mounting datums stable across batches.
Precision Inserts & Bushings
Press-fit and bore features require tight control and clean edges. We confirm measurement method for CTQ diameters and control flash risk at shut-offs.
Clear / Visual Parts
Clarity parts are sensitive to haze, flow marks, and surface defects. We align resin grade and process window with cosmetic criteria and visual inspection standards.
Glass-Filled PET Functional Parts
GF-PET parts are affected by fiber orientation and warpage. We select gate strategy and tooling design to manage fiber-driven distortion and dimensional drift.
Why Choose Kemal for PET Injection Molding
DFM Before Tooling
We review wall thickness balance, rib design, draft, shut-offs, and gate location before cutting steel. Design risks and proposed changes are shared at the quote stage to shorten sampling loops and prevent avoidable rework.
Capacity for Prototype-to-Production
Press capacity from 50–1,300 tons supports both small precision parts and medium-size housings. Prototype sampling and production scheduling are confirmed during quoting, including repeat-order planning.
CTQ Inspection & Documentation Options
Critical-to-quality features are confirmed early, with an inspection method defined for fit and assembly surfaces. Dimensional reports, CMM data, material certificates, and traceability options are available when required.
Mold Design Built for Stability
Cooling layout, venting, and gate strategy are planned for PET to improve fill balance and dimensional repeatability. We prioritize stable cycle behavior and consistent part-to-part output over “one-off pass” sampling.
PET Process Control (Drying & Temperature)
PET projects are managed with defined drying requirements and temperature-controlled molding settings. We align the process window to resin grade, part geometry, and cosmetic requirements to reduce hydrolysis- and haze-related risk.
Secondary Operations & Shipment-Ready Delivery
Beyond molding, we support inserts, marking, light assembly, and packaging as needed. This reduces handoffs and helps you receive parts ready for inspection and integration.
Supporting Services for PET Projects
Early-stage DFM reviews focused on PET-specific risks, including wall thickness balance, gate location, draft, and cosmetic surface control. Design feedback is provided before tooling to reduce sampling loops and dimensional issues.
PET molds are built with cooling, venting, and gate strategy aligned to material behavior and part geometry. Tooling approach is defined to support stable processing and repeatable production output.
PET injection molding with controlled drying and temperature-managed processing. Each run follows a defined process window to support dimensional consistency and appearance stability.
Surface requirements are reviewed based on PET grade and part application, including visual criteria and handling needs. Cosmetic expectations are aligned before sampling to avoid late-stage rework.
CTQ features are identified early, with inspection methods defined to support fit and assembly. Dimensional reports, CMM data, and material documentation are available when required.
Assembly & Delivery
Support for inserts, light assembly, and packaging as part of the PET molding program. Parts are delivered ready for inspection or integration based on your project requirements.
