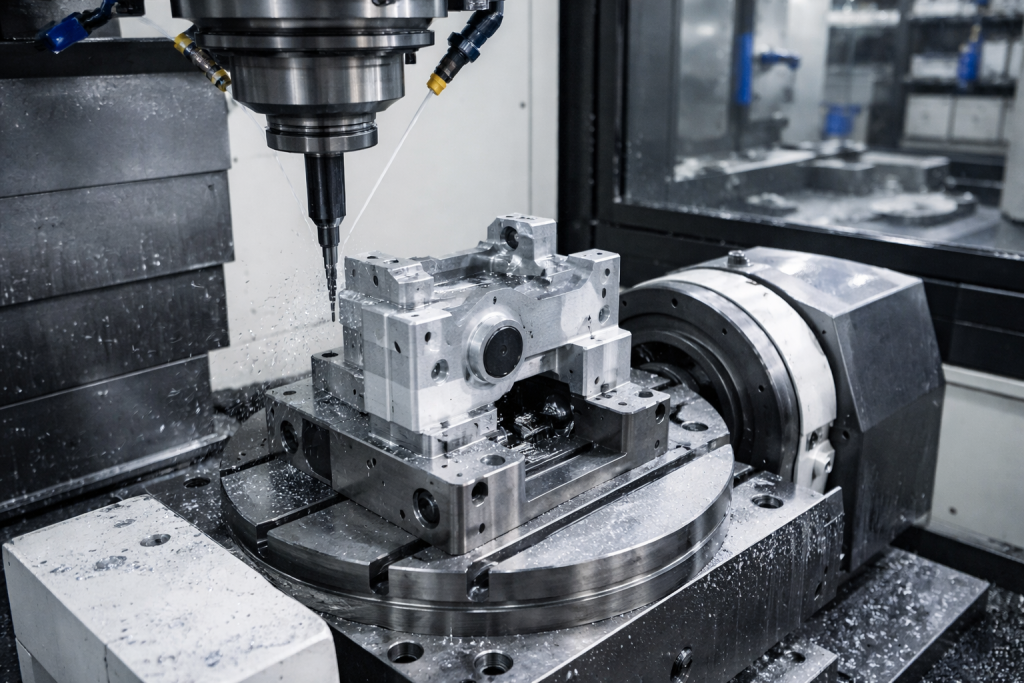

Automotive CNC Machining Services​

We typically CNC machine fit-critical automotive components where dimensional stability, repeatability, and surface control matter more than cosmetics.

Common automotive CNC-machined parts we support:

• Brackets & mounts: sensor brackets, ECU mounts, motor/actuator brackets
• Housings & enclosures: ECU and electronics housings, actuator bodies, gearbox/cover plates
• Precision interfaces: bearing seats, locating bores, dowel features, alignment datums
• Powertrain & drivetrain support parts (non-wear prototypes / low-volume): adapters, covers, fixtures, test components
• Thermal & airflow hardware: heat sinks, cooling plates, pump/valve manifolds, flow blocks
• Chassis / interior hardware: structural supports, hinge and latch parts, reinforcement plates
• Tooling & test hardware for automotive programs: checking fixtures, assembly jigs, validation/test adapters

Typical materials: Aluminum (e.g., 6061/7075), stainless steel, carbon steel, and engineering plastics (e.g., POM/Delrin, PA, PEEK) depending on application and temperature/chemical exposure.

For most automotive CNC parts, we typically hold ±0.01 mm (±0.0004 in) on standard machined features.

If your design has fit-critical bores, bearing seats, or mating interfaces, we can target tighter tolerances—but we’ll confirm what’s realistic during quoting based on the geometry, material, and how the feature will be measured.

If you need it, we can support CMM / FAI dimensional reports to document the critical dimensions and datums.

Yes. We support automotive programs from early prototypes through low-volume and pilot production. Prototype parts are used to validate fit, function, and DFM, and the same machining approach, fixtures, and inspection logic can be carried forward to ensure consistency as volumes increase.

Yes. We can provide FAI and CMM dimensional inspection reports, along with material certificates, upon request. The inspection scope and documentation level are defined during quoting to match your drawing requirements and program needs.

We start by identifying the CTQ features and the drawing datums that drive function—typically bores, bearing seats, sealing faces, and mating interfaces. Then we build the machining plan around those datums (setup sequence, workholding, and toolpath strategy) so the critical features are created in stable, repeatable setups.

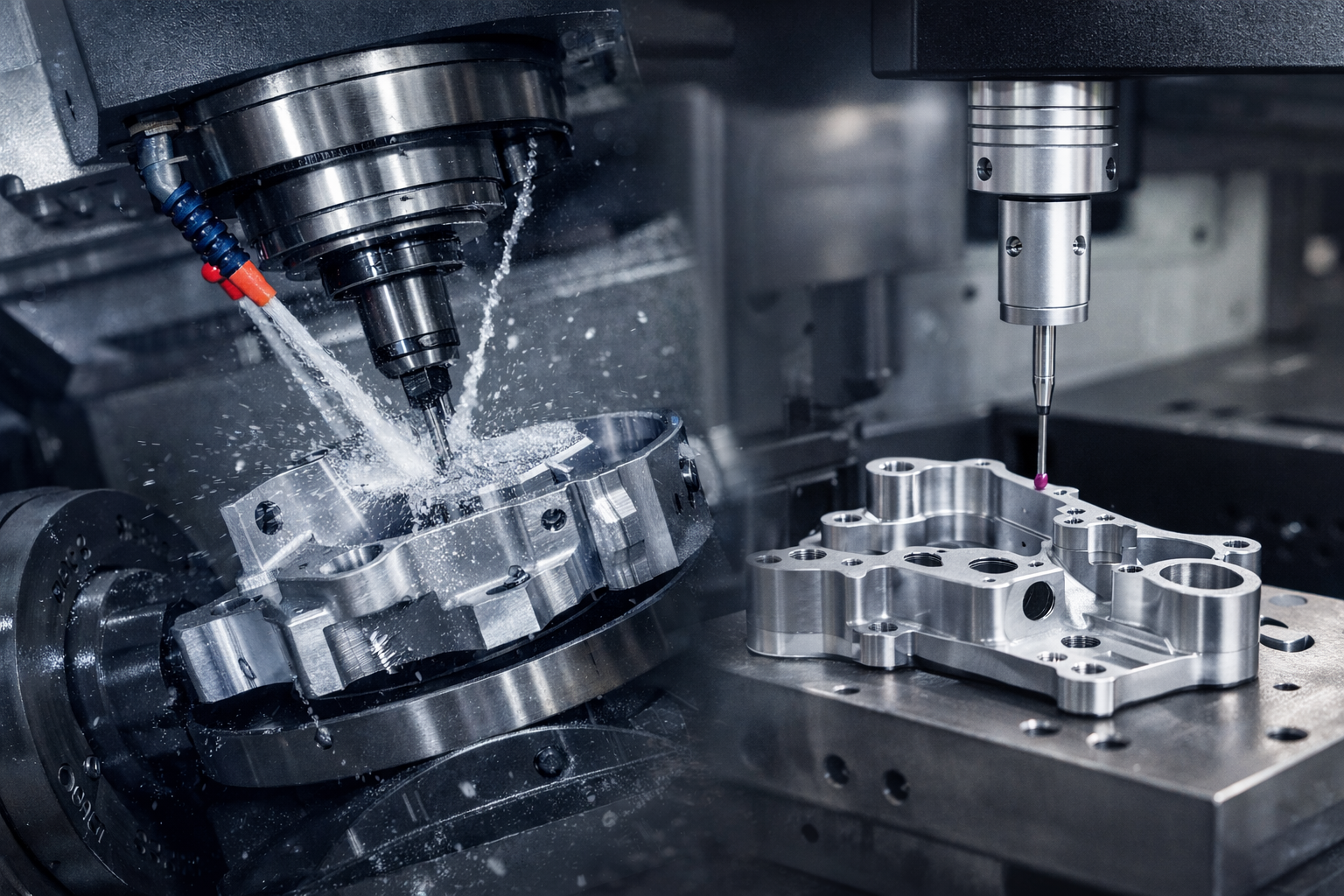

For GD&T, we verify features against the defined datum scheme and inspection method. When required, we use CMM inspection and a documented measurement plan to confirm position, flatness, concentricity, and other GD&T callouts, and we include those results in FAI/CMM reports.

Yes. We provide a practical DFM review before machining to flag cost drivers and risk features early. We’ll suggest changes that keep the function the same but make the part easier and more stable to machine—such as adjusting radii, wall thickness, hole depths, thread engagement, and datum strategy. If any change is needed, we’ll mark it clearly for approval before production.

We can support PPAP-related documentation elements when required by the program. The specific scope—such as dimensional results, material certifications, control plans, or process flow documentation—is defined during quoting to align with your automotive requirements and submission level.

Prototype automotive CNC parts are typically completed in 7–10 business days, depending on geometry, material, and inspection requirements.

For low-volume or pilot builds, lead time is usually 2–4 weeks, as we account for process setup, repeatability planning, and any required inspection or documentation.
